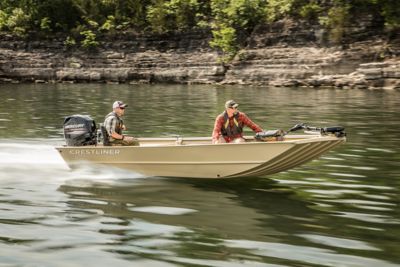

1860 Retriever Jon Deluxe Boat main 223495
1860

RETRIEVER JON DELUXE

1860 RETRIEVER JON DELUXE

WITHSTAND THE TOUGHEST DAYS

From bass fishing to duck hunting, this 18-foot tiller jon boat is the ultimate, all-welded hunting companion. Add storage, livewell, camo paint and more to make it the perfect vessel for your adventures.

STARTING AT

$19,159*

PAYMENTS AS LOW AS

$174.62/MO*

*$1,500 DOWN | 6.25% APR FOR 12 YEARS.

icon

Length

18'

HP Range

20-75

Seating

6

*Factory installed prices shown. All prices are in US Dollars and do not include dealer freight, prep, tariffs, fees, taxes and registration. Prices listed are intended only as a guideline and are subject to change. Dealer alone sets the final purchase price. See dealer for details.

1860 RETRIEVER JON DELUXE FEATURES

OPTIONS

Painted, interior & exterior (Marsh Tan)

Painted, interior & exterior (Marsh Tan)

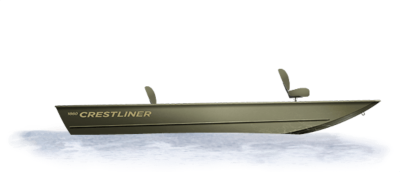

Painted, interior & exterior (Olive drab)

Painted, interior & exterior (Olive Drab)

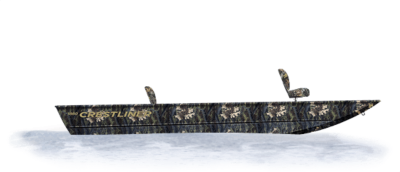

Camo paint - Mossy Oak Breakup

Mossy Oak Break-Up Camouflage exterior and interior

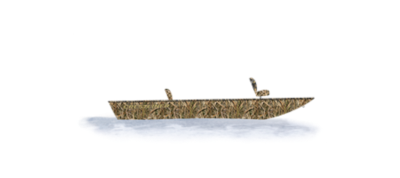

Camo paint - Mossy Shadowgrass

Mossy Oak Shadowgrass Camouflage exterior and interior

Painted, interior & exterior (Marsh Tan)

Crest-Liner interior coating

  • Big Tiller Handle
  • Seat clip (male)

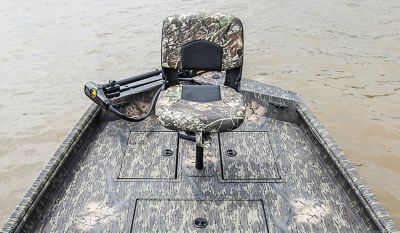

  • Seat, Tempress, Mossy Oak Shadowgrass w/ pedestal
  • Seat, Tempress, Mossy Oak Shadowgrass w/pedestal & base, locking (2) (cockpit)
  • Seat, Tempress, Mossy Oak Shadowgrass w/seat clip (requires seat clip (male) option)
  • Battery charger, 1 bank
  • Battery charger, 2 bank
  • Gunbox, 53" w/rod tubes & cushion (Mossy Oak Shadowgrass)
  • Jet modification

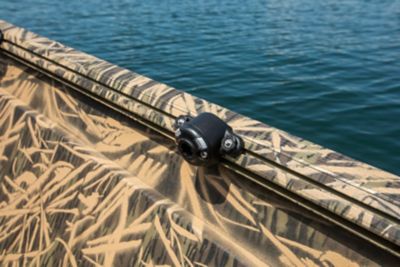

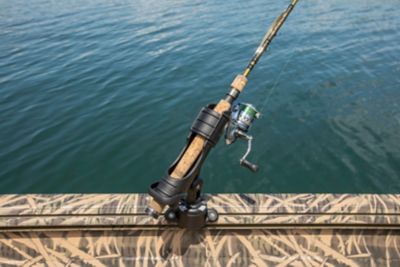

  • Lock Track 5" Accessory Bracket
  • Sponson pods
  • Spray deflector
  • Transducer bracket, welded
  • Transom saver
  • Trolling motor outlet, w/6-gauge wiring harness exchange (24V capable) (bow)
  • MotorGuide X3 45/45" 12V
  • Basic 1800LB Bunk Painted Black Trailer
  • Basic 1800LB Vinyl Bunk Galvanized Trailer
  • Spare tire, w/black Mnt(ST175/80R13C)2X3
  • Spare tire, w/Galv Mnt(ST175/80R13C) 2X3
  • Tie down, ratcheting mounted pair

SPECS & FEATURES

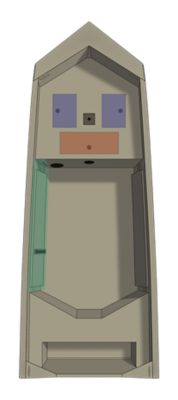

C186DT_floorplan-overhead_1504951
Storage Rod Storage Livewell
Length
18'
HP Range
20-75
Seating
6
Fuel Capacity
Portable
Aluminum Gauge Bottom
0.100"
Aluminum Gauge Sides
0.100"
Aluminum Gauge Transom
0.100"
Beam
85"
Boat/Motor/Trailer Height
6' 10"
Boat/Motor/Trailer Length
21'
Boat/Motor/Trailer Width
7'1"
Chine Width
60"
Deadrise
3.5°
Max HP Capacity
75
Max Weight Capacity
1,659 lbs
Min HP Capacity
20
Side Depth
24"
Transom Height
20"
Weight (Boat only, dry)
723 lbs
Trolling motor outlet, w/8 gauge wiring harness (12V capable) (bow)
Switch panel
Eyes, stainless steel (bow & stern)
Gunnel, extruded w/lock track system
Hull, aluminum, all-welded
Keel, extruded full length, welded (center)
Paint Process, Enamel
Rib construction, cross & side
Ribs, extruded, extra strength
Spray rails, formed
Strakes, formed 1-1/4" (6)
Aluminum floor, flat
Bilge pump (manual)
Compartment seals
Lanyard, ignition stop switch
Level flotation
Light, navigation
Side panels
Wood-free construction

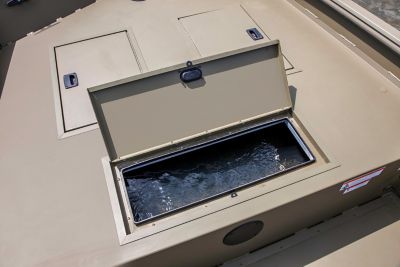

Livewell, 16 gal. aerated (bow)(42Lx10Wx9D)

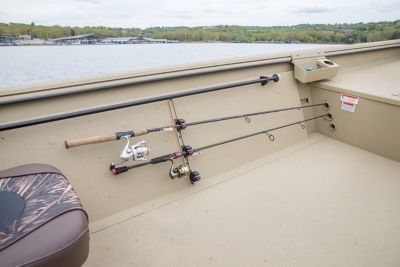

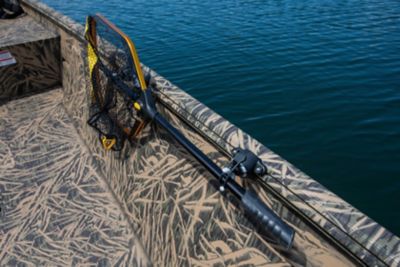

Rod rack, quick access system (port) (holds up to 3 full-size rods)
Pedestal base (bow)

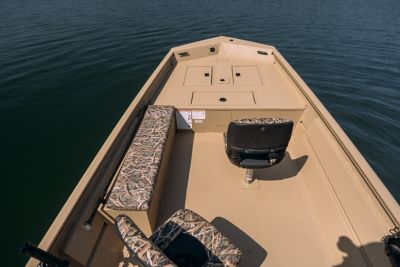

Seat, bench, winged w/seat track (stern)
Battery tray
Platform, low (bow)

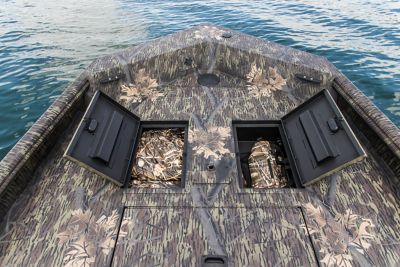

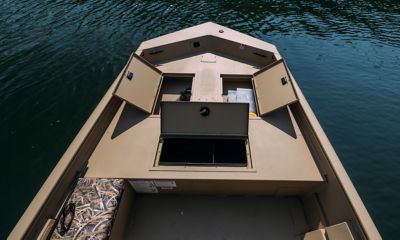

Storage compartments w/compression latches (port & starboard, bow)
Basic 1800LB Bunk Painted Black Trailer
