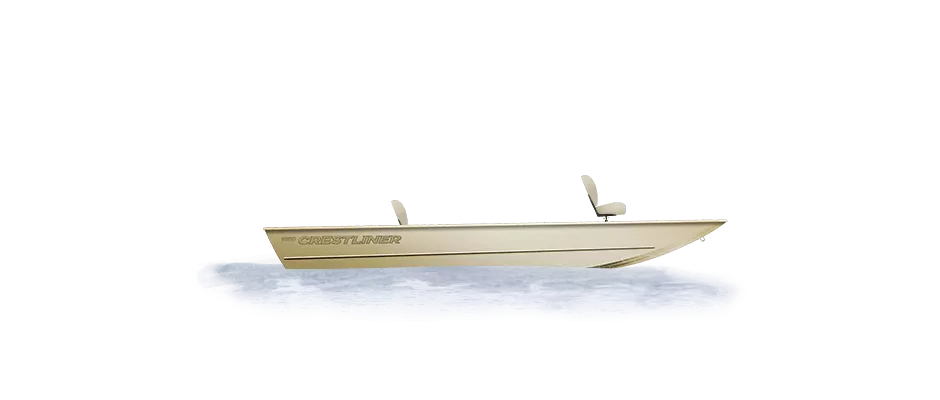

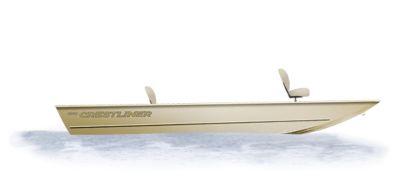

1860 RETRIEVER JON DELUXE

Starting At $25,090*

1860 RETRIEVER JON DELUXE

1860 RETRIEVER JON DELUXE

Starting At $25,090*

BUILD & PRICE

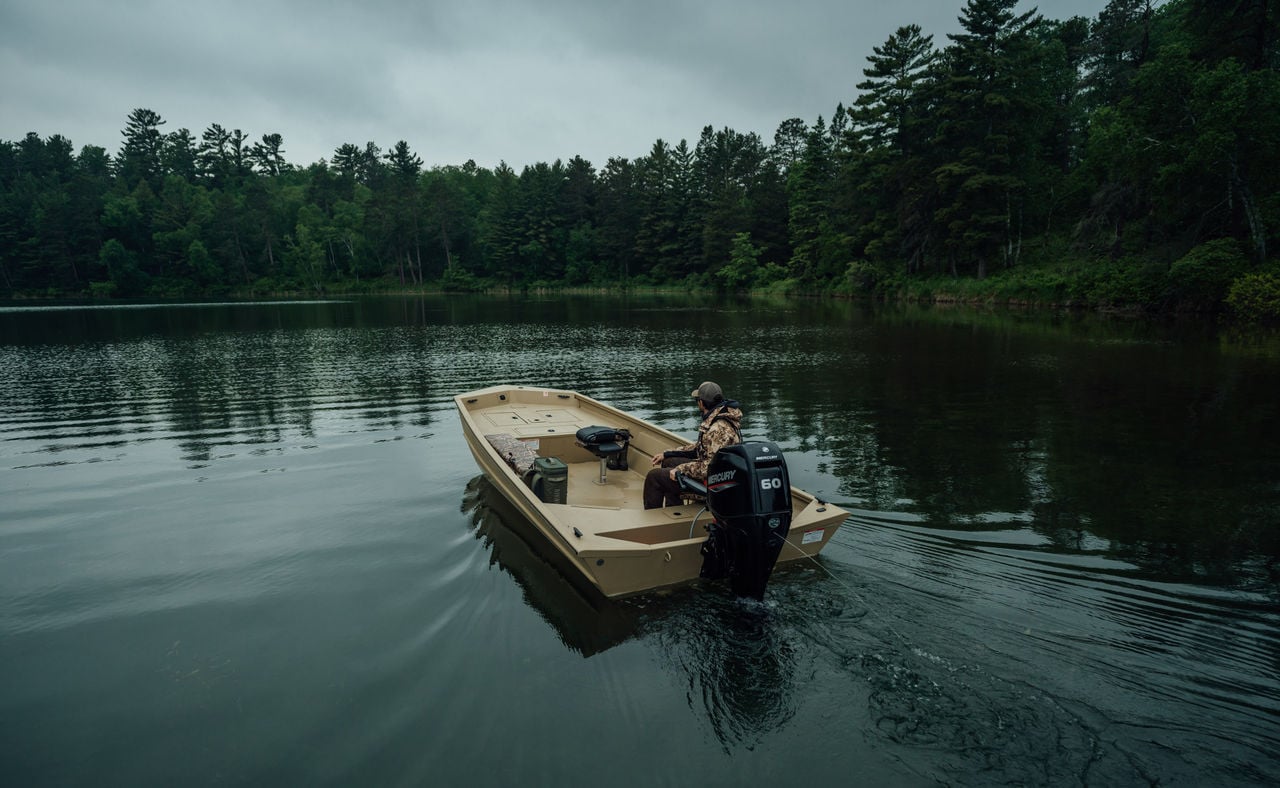

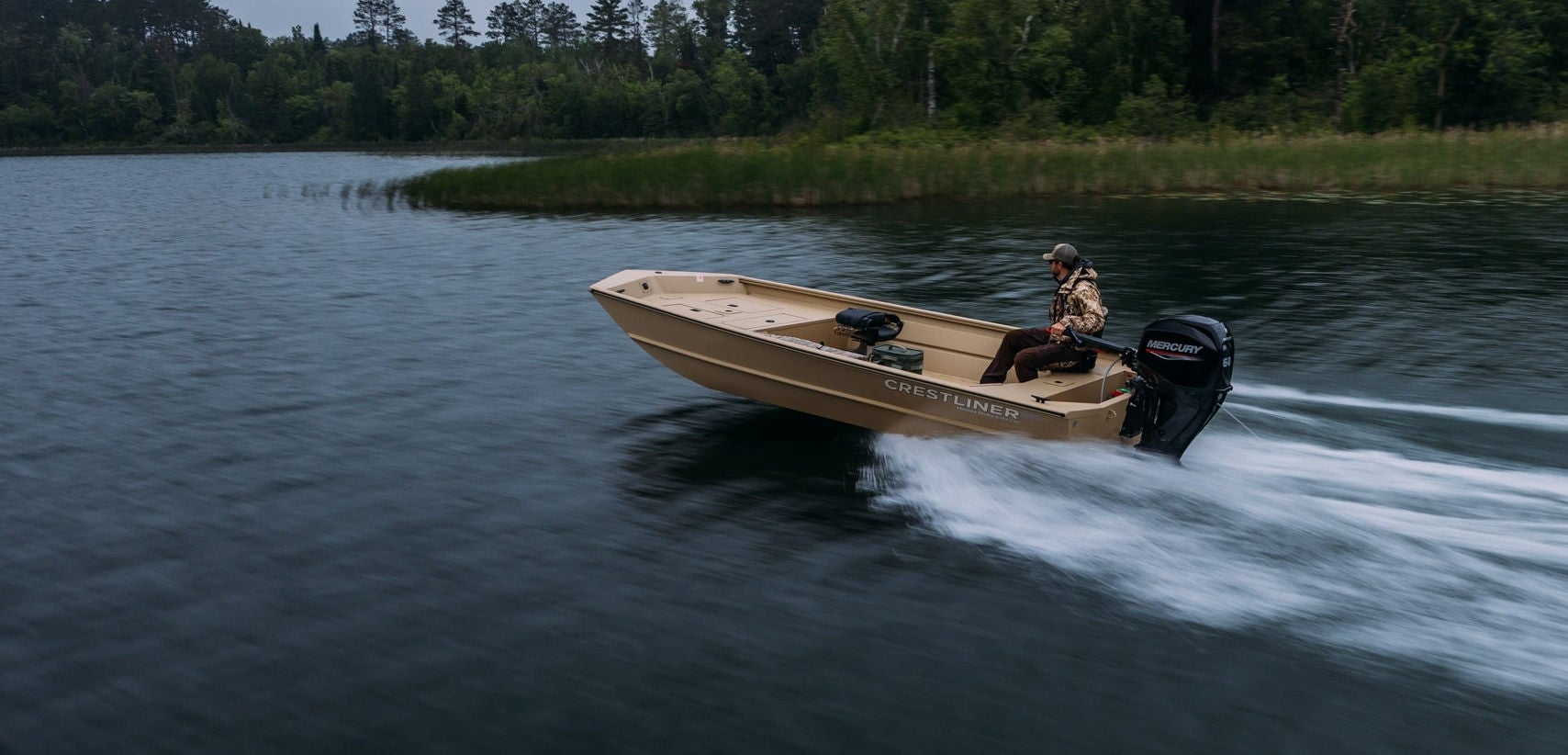

From bass fishing to duck hunting, this 18-foot tiller jon boat is the ultimate, all-welded hunting companion. Add storage, livewell, camo paint and more to make it the perfect vessel for your adventures.

18' Length Overall
75 Max HP
6 Persons Capacity
85" Beam

FEATURES

1760 Retriever Jon Deluxe Key Feature 2 x 2 65413

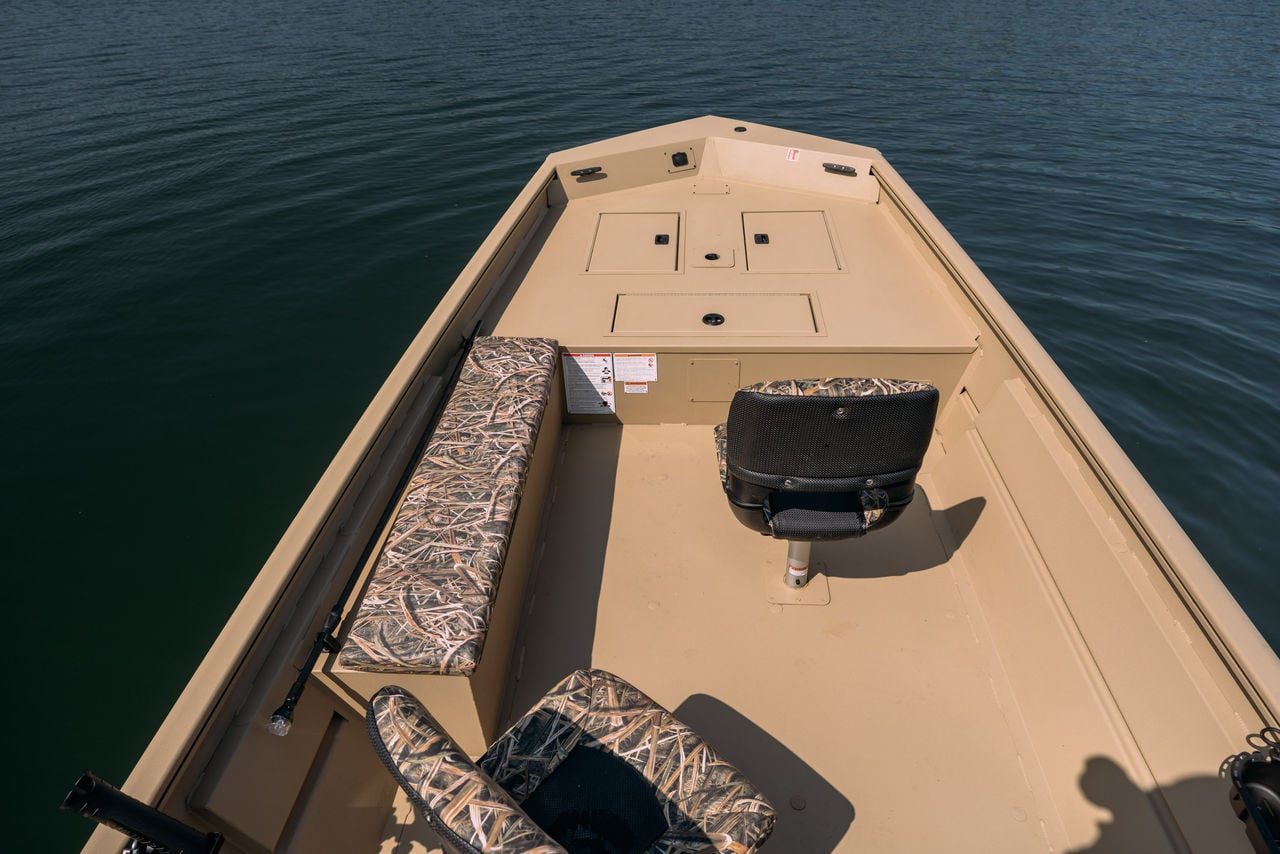

BOW STORAGE

A spacious, lockable compartment in the bow deck keeps gear secure and stowed away.

1760 Retriever Jon Deluxe Key Feature 2 x 2 41852

16-GALLON LIVEWELL

A standard 16-gallon livewell is located in the bow for easy access.

1760 Retriever Jon Deluxe Key Feature 2 x 2 150597

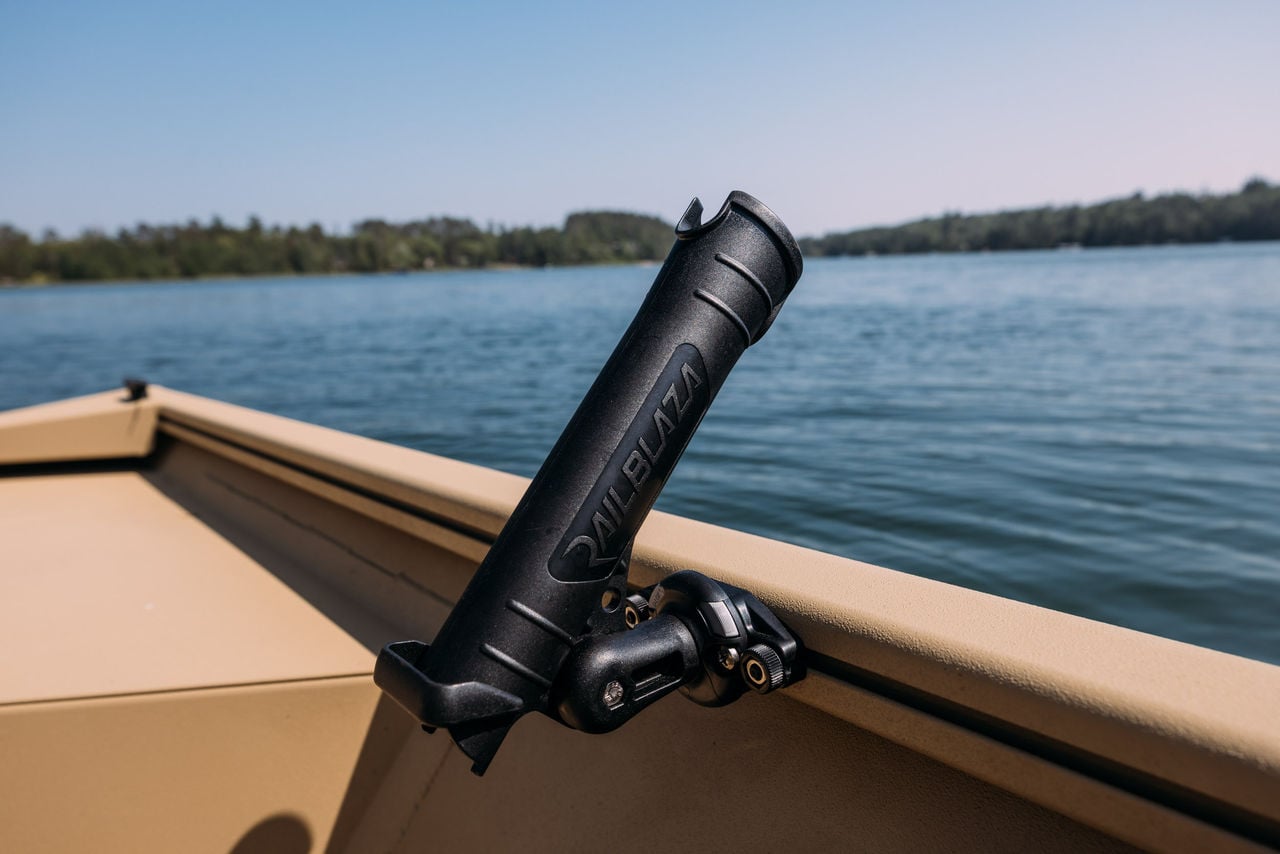

ROD RACK

Port-side rod rack holds up to three rods.

Length Overall

18'

Max HP

75

Persons Capacity

6

Beam

85"

Deadrise

3.5°

Transom Height

20"

Chine Width

60"

Side Depth

24"

Boat/Motor/Trailer Height

6' 10"

Boat/Motor/Trailer Length

21'

Boat/Motor/Trailer Width

7'1"

Aluminum Gauge Bottom

0.100"

Aluminum Gauge Sides

0.100"

Aluminum Gauge Transom

0.100"

Fuel Capacity

Portable

Maximum Weight Capacity

1,659 lbs

Maximum Horsepower

75

Minimum Horsepower

20

Weight (dry, no engine)

749 lbs

Weight Boat (max engine, dry)

1108 lbs

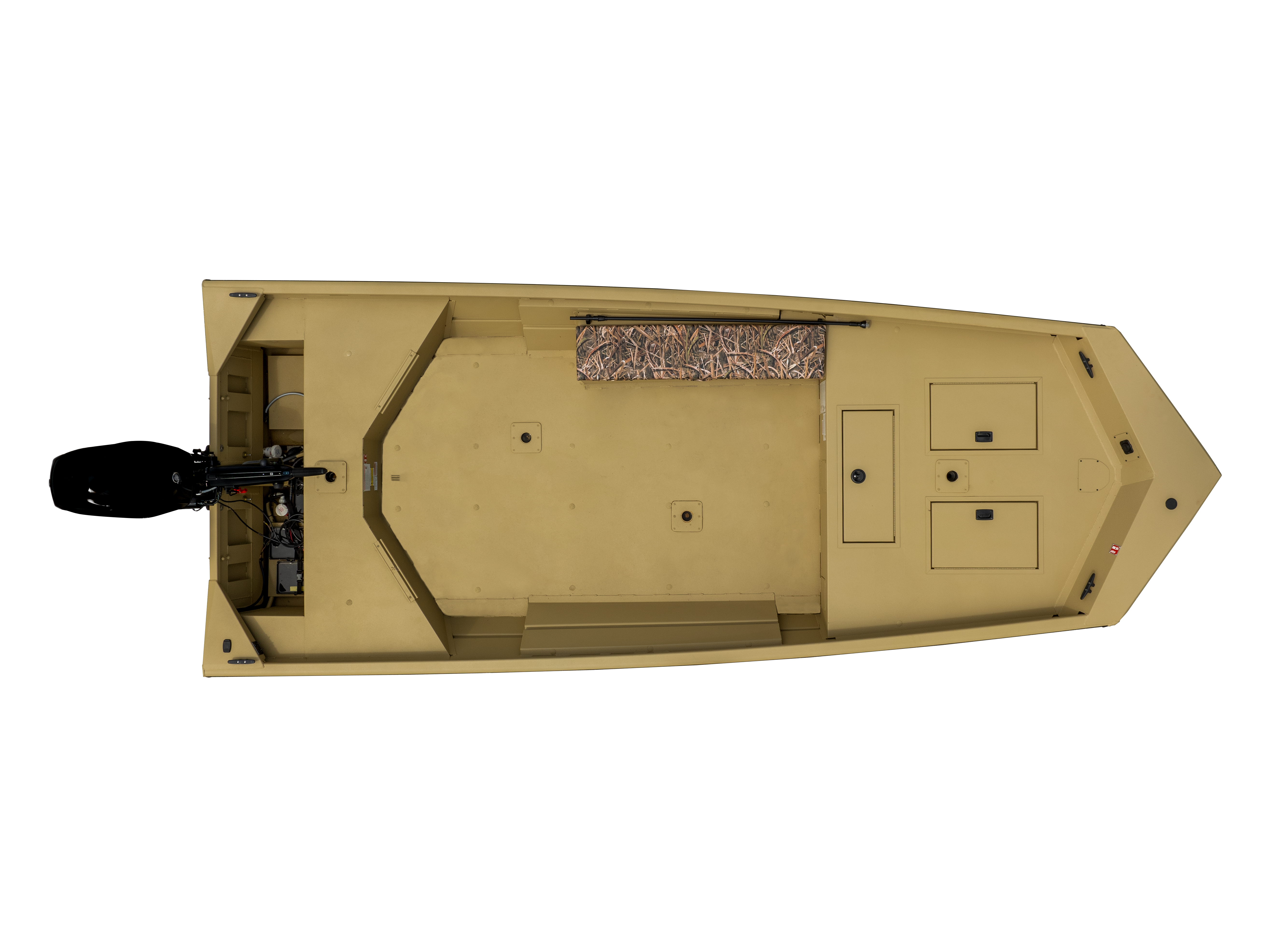

Floorplan

View all

Exterior Features

0 Eyes, stainless steel (bow & stern) Gunnel, extruded w/lock track system Hull, aluminum, all-welded Keel, extruded full length, welded (center) Paint Process, Enamel Rib construction, cross & side Ribs, extruded, extra strength Spray rails, formed Strakes, formed 1-1/4" (6)

Accessories

Trolling motor outlet, w/6-gauge wiring harness (24V) (bow)

Console/Instrumentation

Switch panel

Flooring

Aluminum floor, flat

Interior Features

Bilge pump (manual) Compartment seals Lanyard, ignition stop switch Level flotation Light, navigation Side panels Wood-free construction

Livewells/Baitwells

Livewell, 16 gal. aerated (bow)(42Lx10Wx9D)

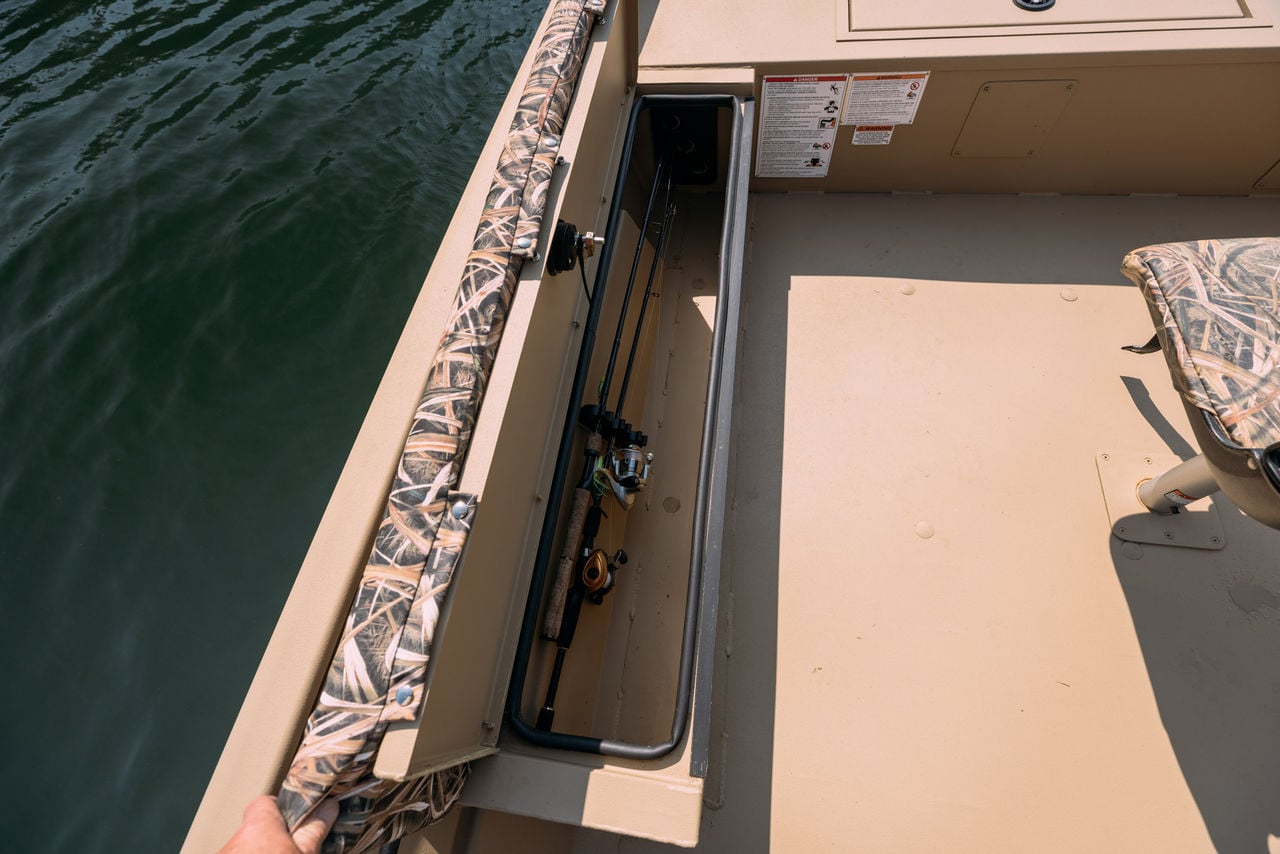

Rod Storage

Rod rack, quick access system (port) (holds up to 3 full-size rods)

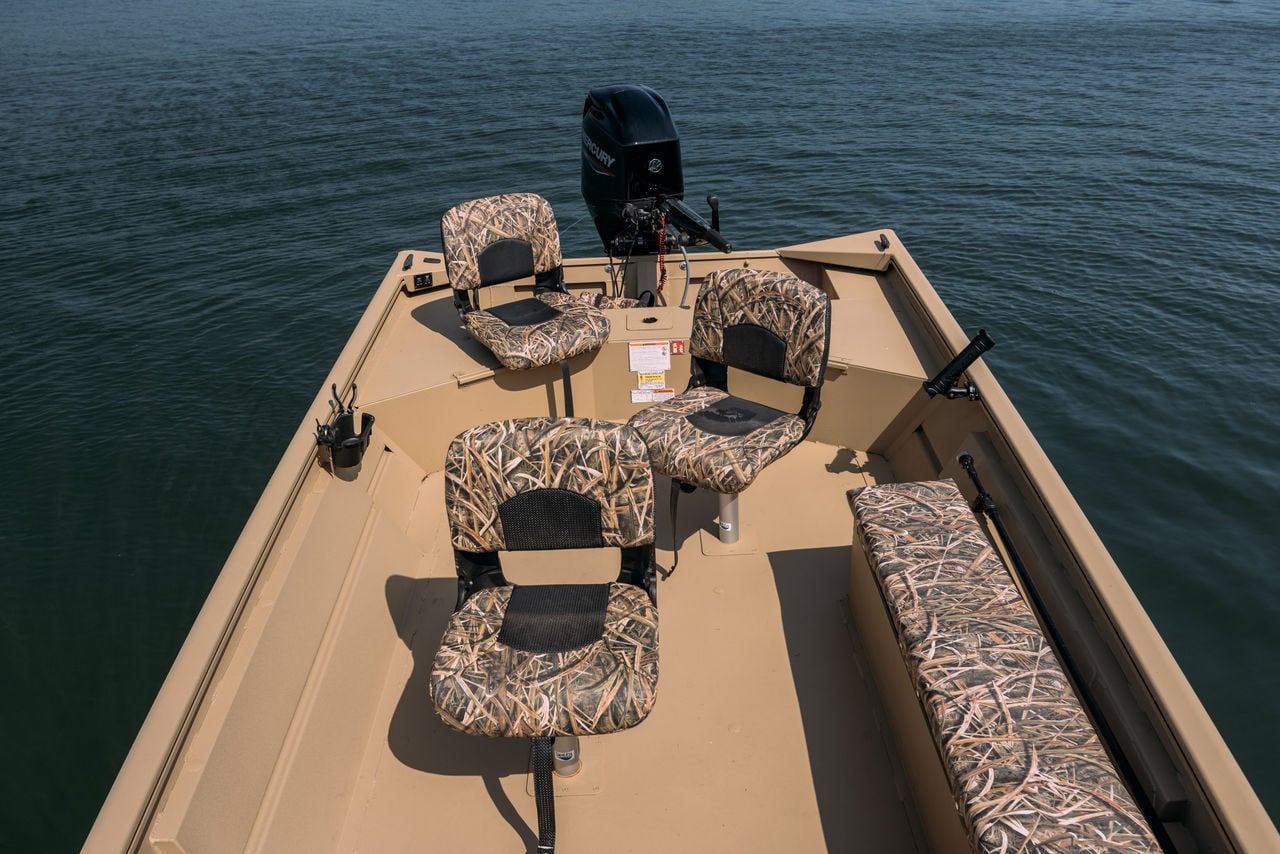

Seating

Pedestal base (bow) Seat, bench, winged w/seat track (stern)

Storage/Convenience

Battery tray Platform, low (bow) Storage compartments w/compression latches (port & starboard, bow)

Trailer

Basic 1800LB Bunk Painted Black Trailer
Floorplan

View all

Standard Colors

Marsh Tan exterior & interior Olive Drab exterior & interior

Premium Colors

Mossy Oak Break-Up exterior & interior Mossy Oak Shadowgrass Blades exterior & interior

Interior Coating

Crest-Liner interior coating

Engine

Mercury 40ELHPT FourStroke w/Advanced Tiller Handle Mercury Jet 40ELPT EFI FourStroke (Requires Jet modification & transom riser) Mercury 50ELHPT EFI FourStroke Mercury 60ELHPT EFI FourStroke Mercury 75ELPT EFI FourStroke

Console/Instrumentation

Big Tiller Handle

Seating

Seat Clip (male) Tempress Seat, Mossy Oak Shadowgrass Blades w/seat clip (requires male seat clip) Tempress Seat, Mossy Oak Shadowgrass Blades w/pedestal Tempress Seat, Mossy Oak Shadowgrass Blades w/pedestal & base, locking (2) (cockpit)

Accessories

Spray deflector Transducer bracket, welded Battery charger 1 bank Transom saver Battery charger 2 bank Sponson pods Jet modification Gunbox, 53" w/rod tubes & cushion (Mossy Oak Break-Up) Gunbox, 53" w/rod tubes & cushion (Mossy Oak Shadowgrass Blades) Hull Gauge .125 Jet modification w/ 27" transom

Trailer

Basic 1800LB Vinyl Bunk Galvanized Trailer Basic 1800LB Bunk Painted Black Trailer

Trailer Accessories

Spare Tire w/Black Mount Spare Tire w/Galvanized mount Tie down, ratcheting mounted pair

Limited Lifetime Warranty

Crestliner's longstanding promise to deliver superior durability, exceptional design and unmatched value is a commitment we don't take lightly. As part of that commitment, we stand by our product with a warranty that is unmatched by competitors. For additional information about our warranty, and how to transfer coverage to a new owner, see the list of Warranty Documents.

Limited Lifetime Warranty

Crestliner boats, from model year 2010 and newer, have a warranty that may be transferred to subsequent owners. To transfer any remaining portions of your Crestliner warranty, please register your pre-owned Crestliner. To register your warranty information with Crestliner, print and complete the Warranty Transfer form and mail it in to Crestliner within 90 days of purchase, along with a copy of the Bill of Sale or Title, and a $250 warranty transfer fee. The check or money order should be made payable to Crestliner.

Warranty on Crestliner CR Jon boats may not be transferred.

For more information on warranties, contact your local Crestliner dealer.
