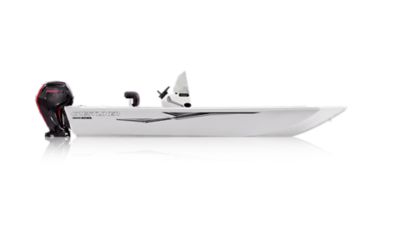

2070 RB-X

Starting At $35,870*

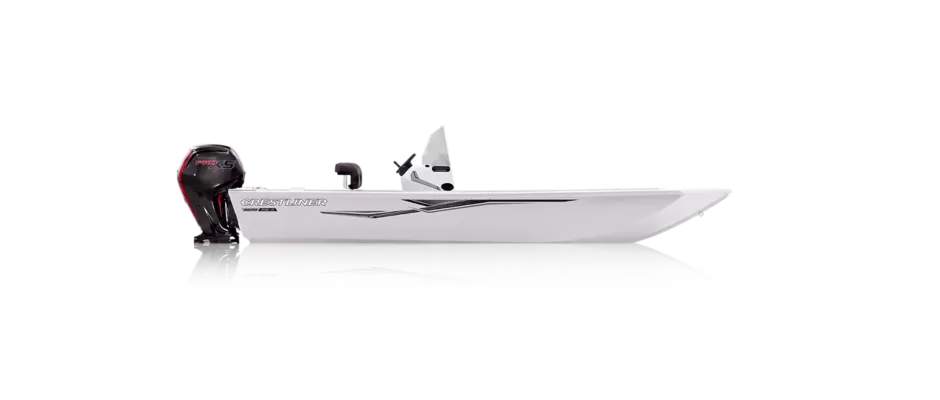

2070 RB-X

2070 RB-X

Starting At $35,870*

BUILD & PRICE

The 2070 RB-X gives anglers more room, more capability, and more ways to fish. Designed for those who demand versatility without sacrificing value, it pairs an expansive layout with premium fishing features, available T-Top protection, and rugged aluminum construction to tackle everything from coastal bays to inland waters.

20' Length Overall
150 Max HP
7 Persons Capacity
96" Beam

FEATURES

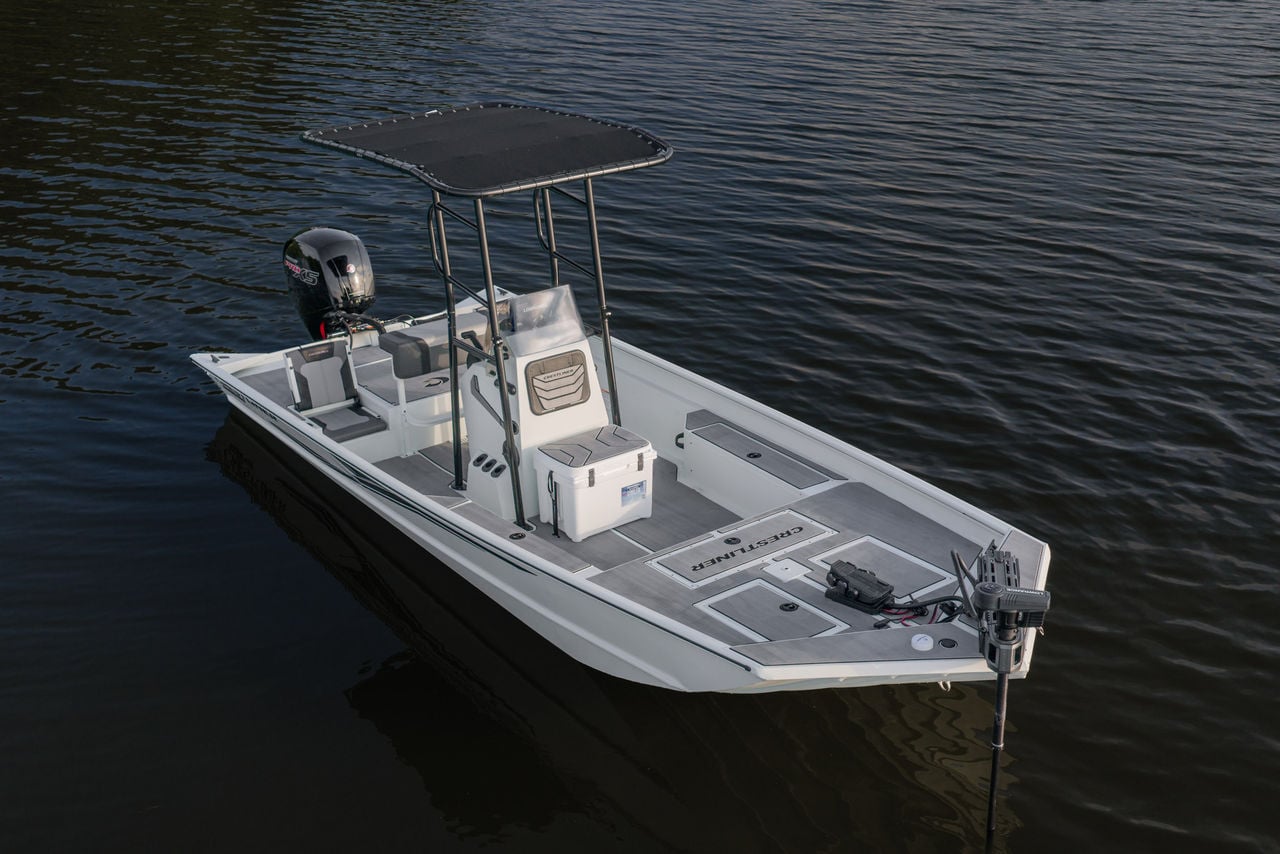

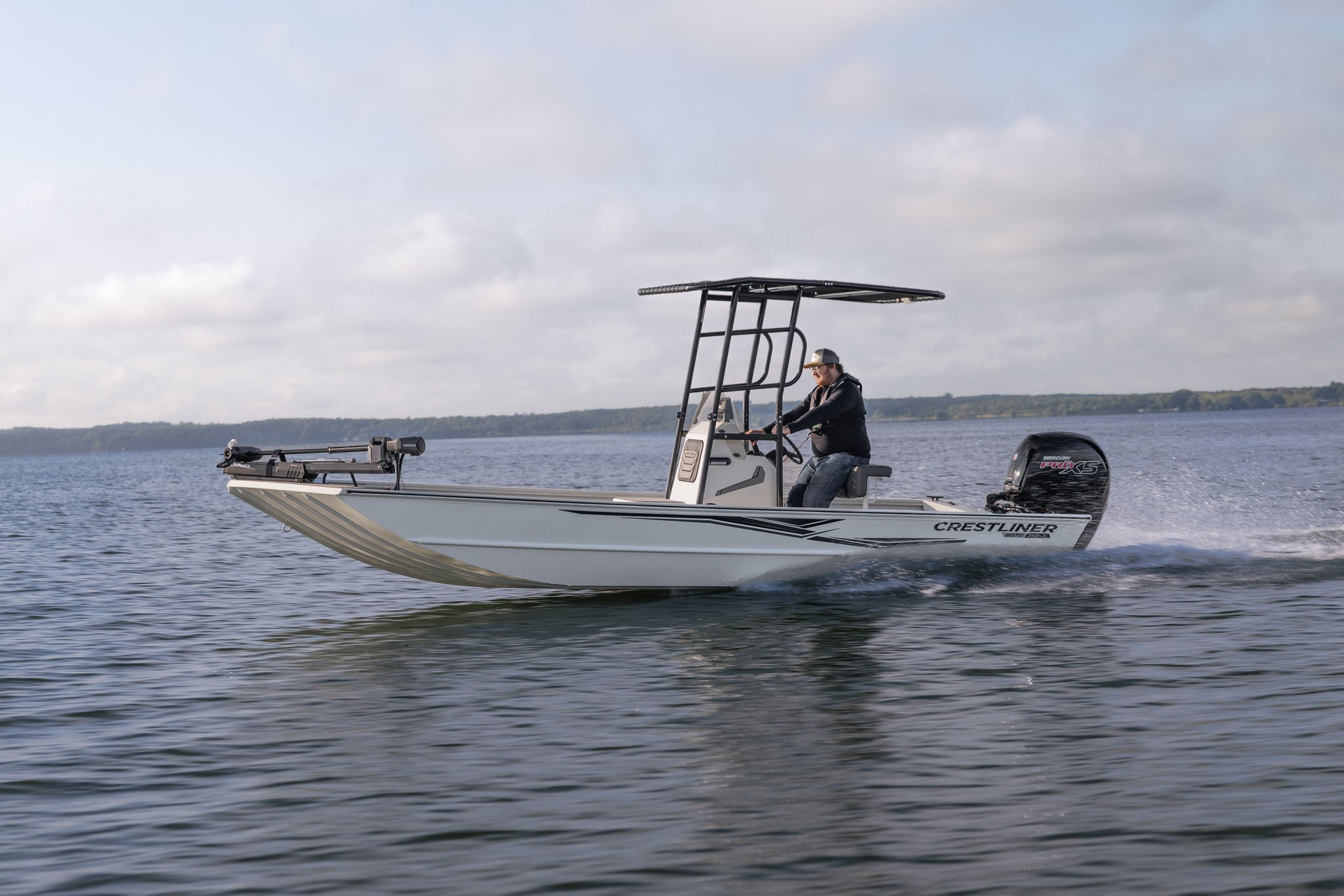

2070 RB-X on the water

HEAVY-DUTY .125" ALUMINUM HULL

Built for years of hard use with durable .125" aluminum construction that inspires confidence on every outing.

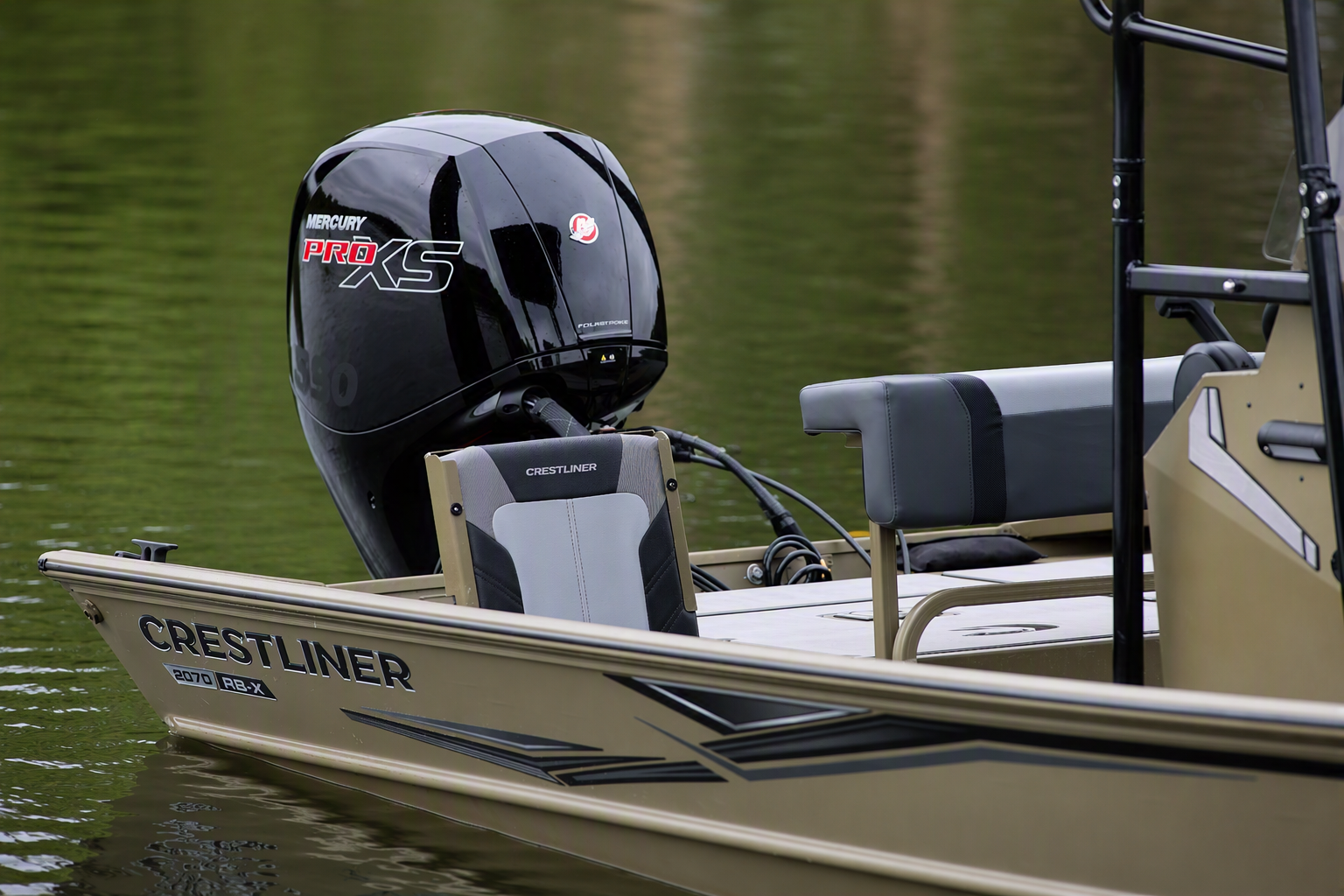

Crestliner RB-X 1870 Detail image

STANDARD REAR JUMP SEATS

Fold-down jump seats provide additional seating while preserving an open fishing layout.

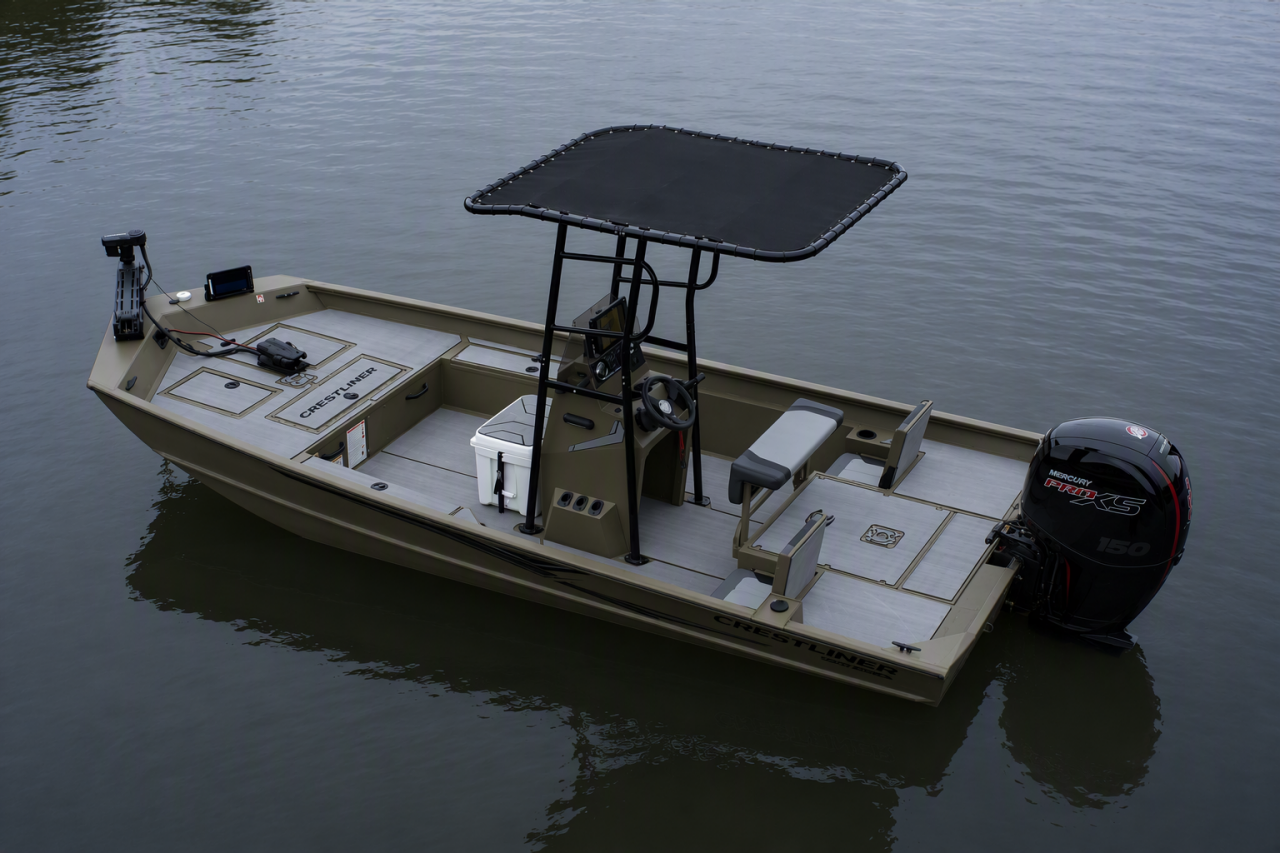

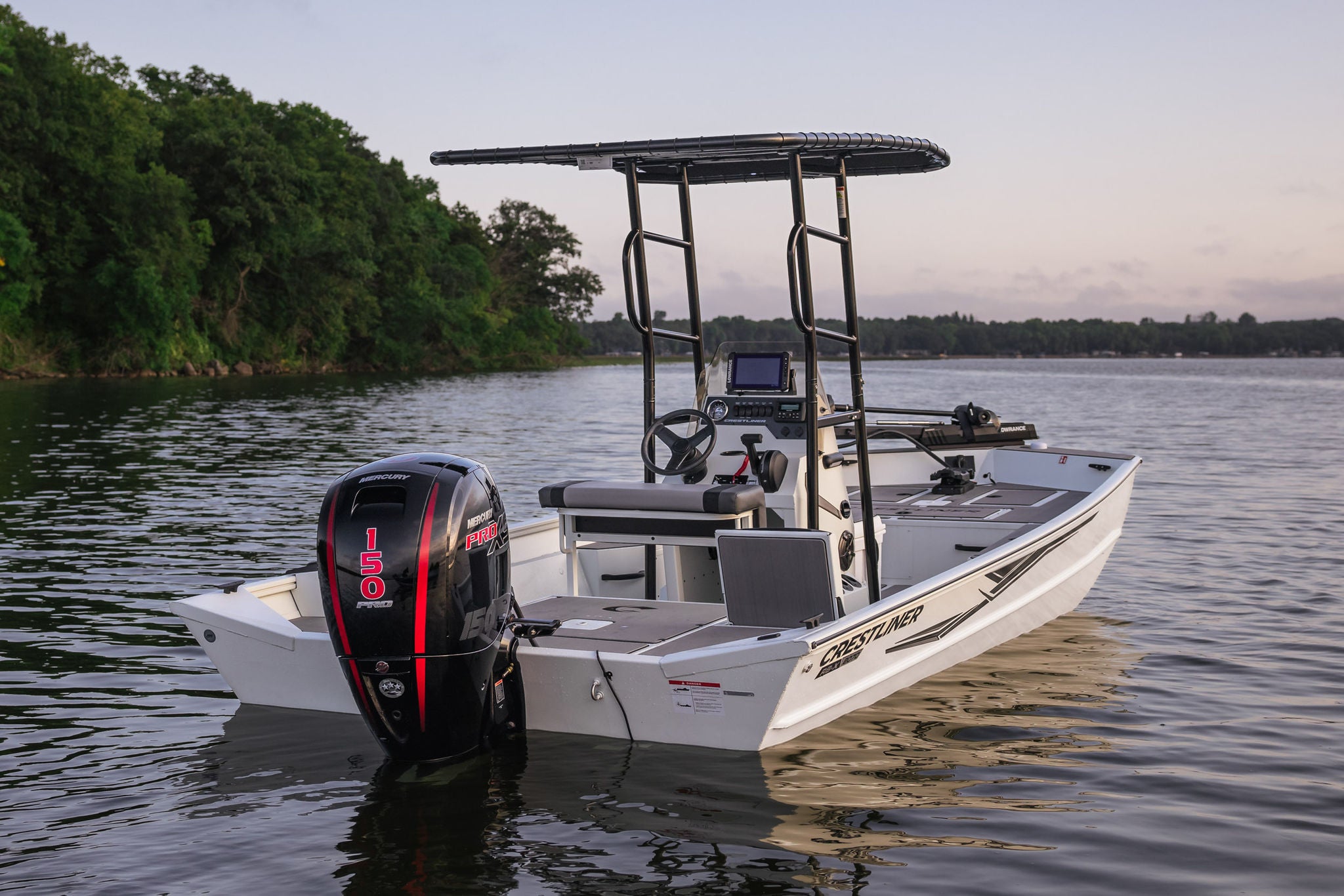

2070 RB-X

FACTORY T-TOP Available

Stay protected from the elements with a factory-installed T-Top designed to provide shade without sacrificing fishability.

Length Overall

20'

Max HP

150

Persons Capacity

7

Beam

96"

Deadrise

3.5°

Transom Height

20"

Chine Width

70"

Side Depth

24"

Boat/Motor/Trailer Height

6' 10"

Boat/Motor/Trailer Length

23'

Boat/Motor/Trailer Width

8'

Aluminum Gauge Bottom

0.125"

Aluminum Gauge Sides

0.100"

Aluminum Gauge Transom

0.100"

Fuel Capacity

19 gal.

Maximum Weight Capacity

1100 lbs

Maximum Horsepower

150

Minimum Horsepower

115

Weight Boat (max engine, dry)

1862 lbs

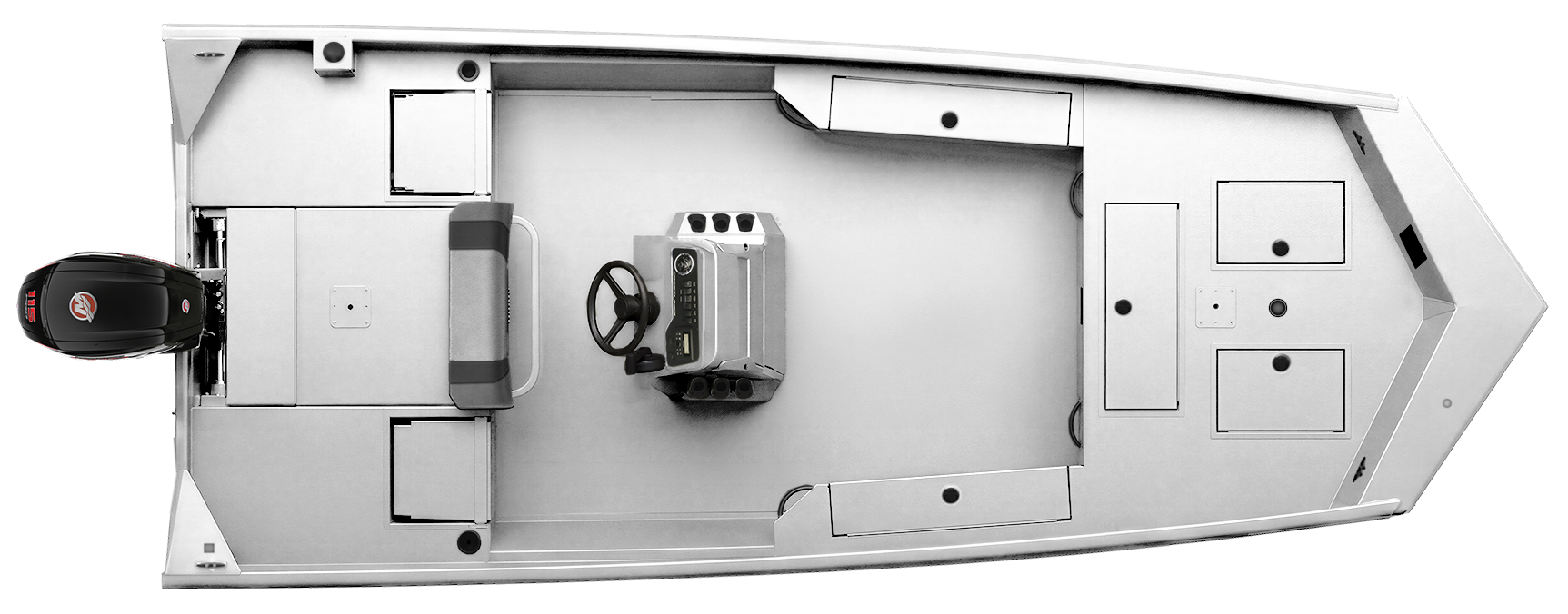

Floorplan

View all

Exterior Features

Cleats, black composite (4) Eyes, stainless steel (bow & stern) Gunnel, extruded w/lock track system Hull, aluminum, all-welded Keel, extruded full length, welded (center) Paint Process, Enamel Rib construction, cross & side Ribs, extruded, extra strength Spray rails, formed Strakes, formed 1-1/4" (8)

Accessories

Trolling motor outlet, w/6-gauge wiring harness (bow)

Console/Instrumentation

Console, center mounted aluminum w/6 vertical rod holders, rocker switches, 12V power outlet, space for top mount electronics, 2 drink holders & 2 grab handles Master power switch Speedometer, fuel, tachometer and trim gauges No-feedback steering Steering wheel, black composite Horn Windscreen

Flooring

Aluminum floor, flat

Interior Features

Bilge pump (manual) Compartment seals Lanyard, ignition stop switch Level flotation Light, navigation Side panels Wood-free construction

Livewells/Baitwells

Livewell, 21 gal. aerated (bow) 36Lx13Wx12H

Rod Storage

Rod rack, vertical (console) (holds 6 rods) Rod/Gear storage, lockable (port & starboard) (8' capacity)

Seating

Pedestal floor bases (2) Leaning post w/cushion Seat, jump seats (2) (stern)

Storage/Convenience

Storage compartments, (port & starboard, bow) Platform (bow) Platform w/lid & service compartment (stern)

Trailer

Basic 2200LB Bunk Painted Black Trailer
Floorplan

View all

Standard Colors

Olive Drab exterior & interior Marsh Tan exterior & interior

Premium Colors

Mossy Oak Break-Up exterior & interior Mossy Oak Shadowgrass Blades exterior & interior Blue exterior, Bright White interior Black exterior, Bright White interior Silver exterior, Bright White interior Gun Metal exterior, Bright White interior Candy Apple Red exterior, Bright White interior Bright White exterior, Bright White interior

Engine

Mercury 115ELPT EFI FourStroke Mercury 115ELPT Pro XS FourStroke Mercury 150L Pro XS FourStroke

Mercury Options

Pre-Rig 25HP & Up

Packages

Essentials Package

Console/Instrumentation

Hydraulic steering Tilt steering

Flooring

SoftStep reFLEX Flooring w/Crest-Liner interior, gray SoftStep reFLEX Flooring w/Crest-Liner interior, tan

Seating

Pro fishing seat w/pedestal, tan (each additional)

Accessories

Sponson pods Battery charger 3 bank Cooler (front of console) Bilge pump (automatic) Transducer bracket, welded Trim switch (bow) Rod Trees for Enclosed Side Rod Storage (starboard) Rod Trees for Enclosed Side Rod Storage (port) T-Top, black Battery Charger, 4 bank Battery charger 2 bank Trolling motor battery storage (36V system compatible) (stern) T-Top, white Transom saver Washdown system

Trailer

Basic 2400LB Bunk Painted Black Trailer Basic 2400LB Vinyl Bunk Galvanized Trailer Basic 2400LB Bunk Painted Black Trailer w/alum wheels

Trailer Accessories

Spare tire, Mag w/Galv mount Spare Tire, w/black Mount(ST175/80R13C)2X4 Tie down, ratcheting mounted pair Spare Tire, w/Galv Mount(ST175/80R13C) 2X4

Limited Lifetime Warranty

Crestliner's longstanding promise to deliver superior durability, exceptional design and unmatched value is a commitment we don't take lightly. As part of that commitment, we stand by our product with a warranty that is unmatched by competitors. For additional information about our warranty, and how to transfer coverage to a new owner, see the list of Warranty Documents.

Limited Lifetime Warranty

Crestliner boats, from model year 2010 and newer, have a warranty that may be transferred to subsequent owners. To transfer any remaining portions of your Crestliner warranty, please register your pre-owned Crestliner. To register your warranty information with Crestliner, print and complete the Warranty Transfer form and mail it in to Crestliner within 90 days of purchase, along with a copy of the Bill of Sale or Title, and a $250 warranty transfer fee. The check or money order should be made payable to Crestliner.

Warranty on Crestliner CR Jon boats may not be transferred.

For more information on warranties, contact your local Crestliner dealer.
