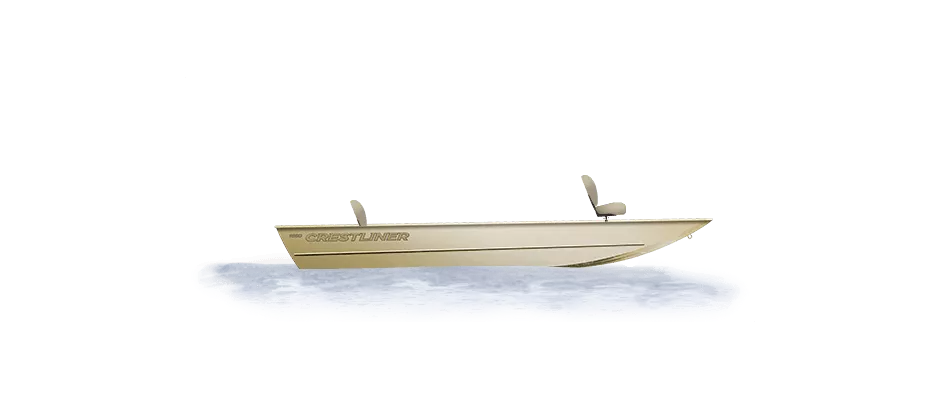

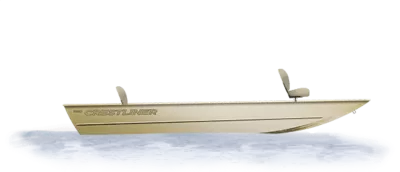

1660 RETRIEVER JON

Starting At $17,954*

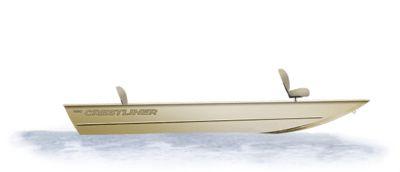

1660 RETRIEVER JON

1660 RETRIEVER JON

Starting At $17,954*

BUILD & PRICE

The 1660 Retriever Jon is a no-nonsense flat-bottomed boat that's ready to hunt or fish at a moment's notice. This 16-foot jon boat has a strong, durable hull made of all-welded aluminum. That strength makes it low maintenance and means you can reach any corner of the water in search of your next catch.

16' Length Overall
40 Max HP
4 Persons Capacity
80" Beam

FEATURES

1660 Retriever Jon Key Feature

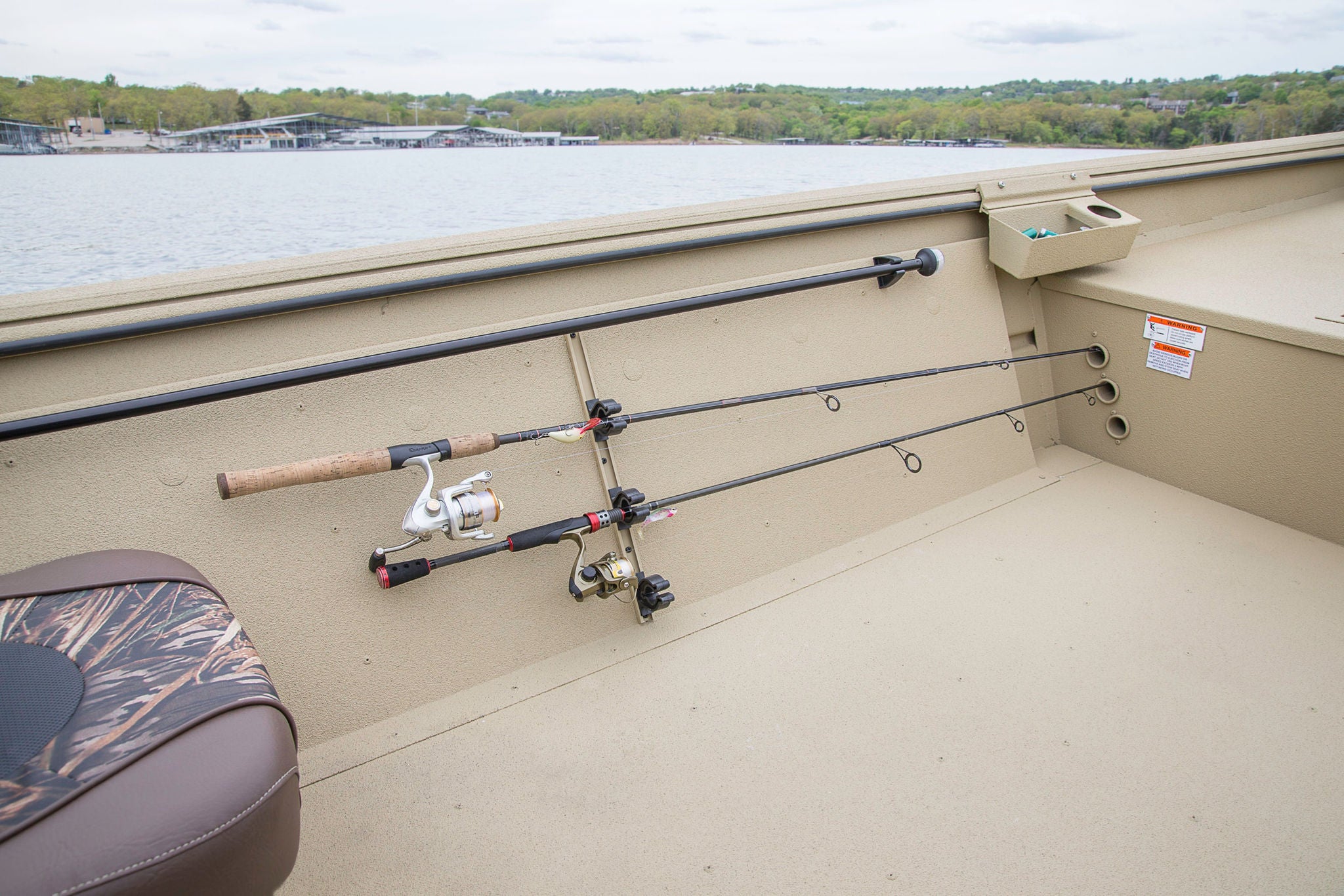

ROD RACK

Port-side rod rack holds up to three rods.

1660 Retriever Jon Image

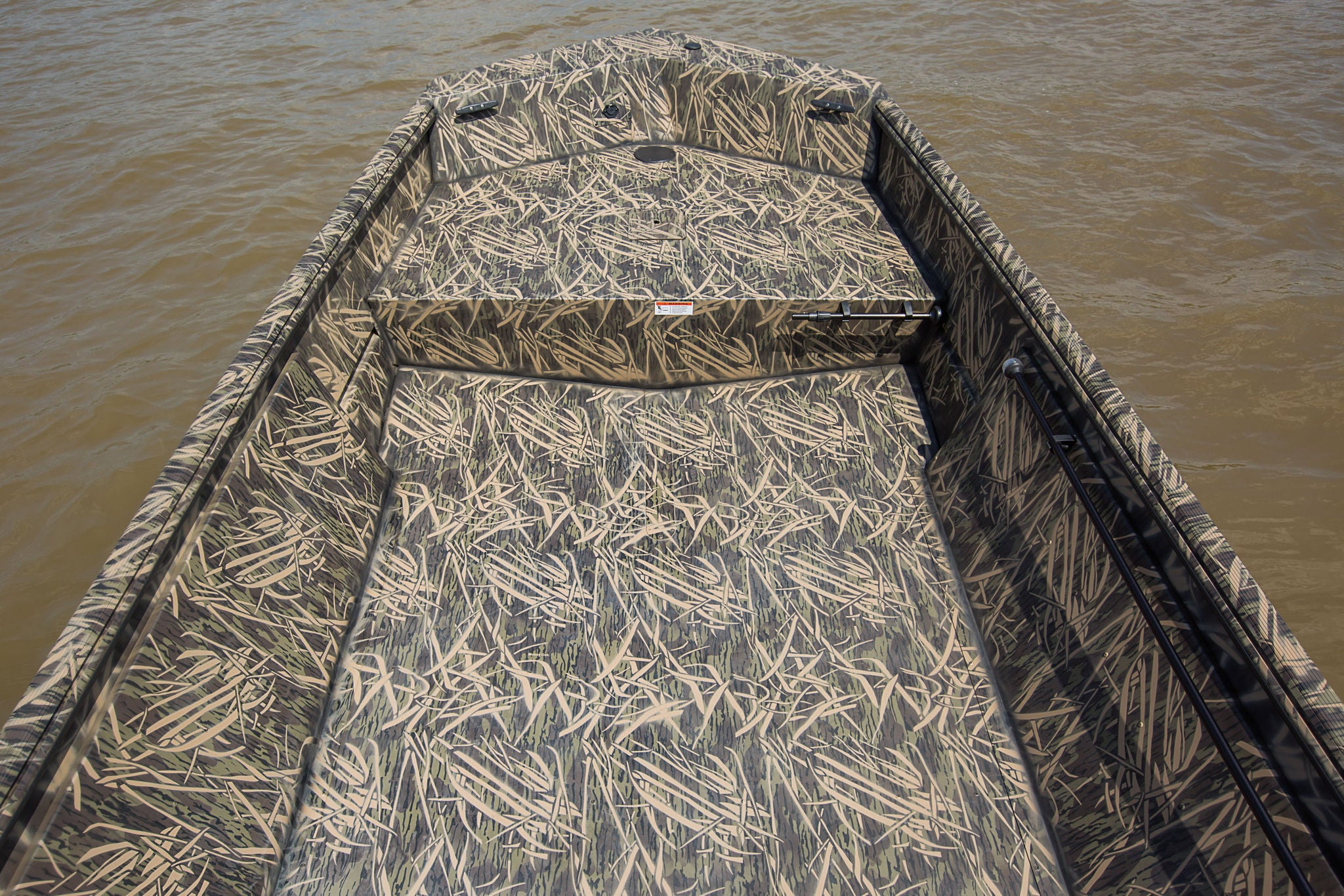

FLAT FLOOR

Built-in flat floor ensures stability while you're angling.

Crestliner Retriever Jon

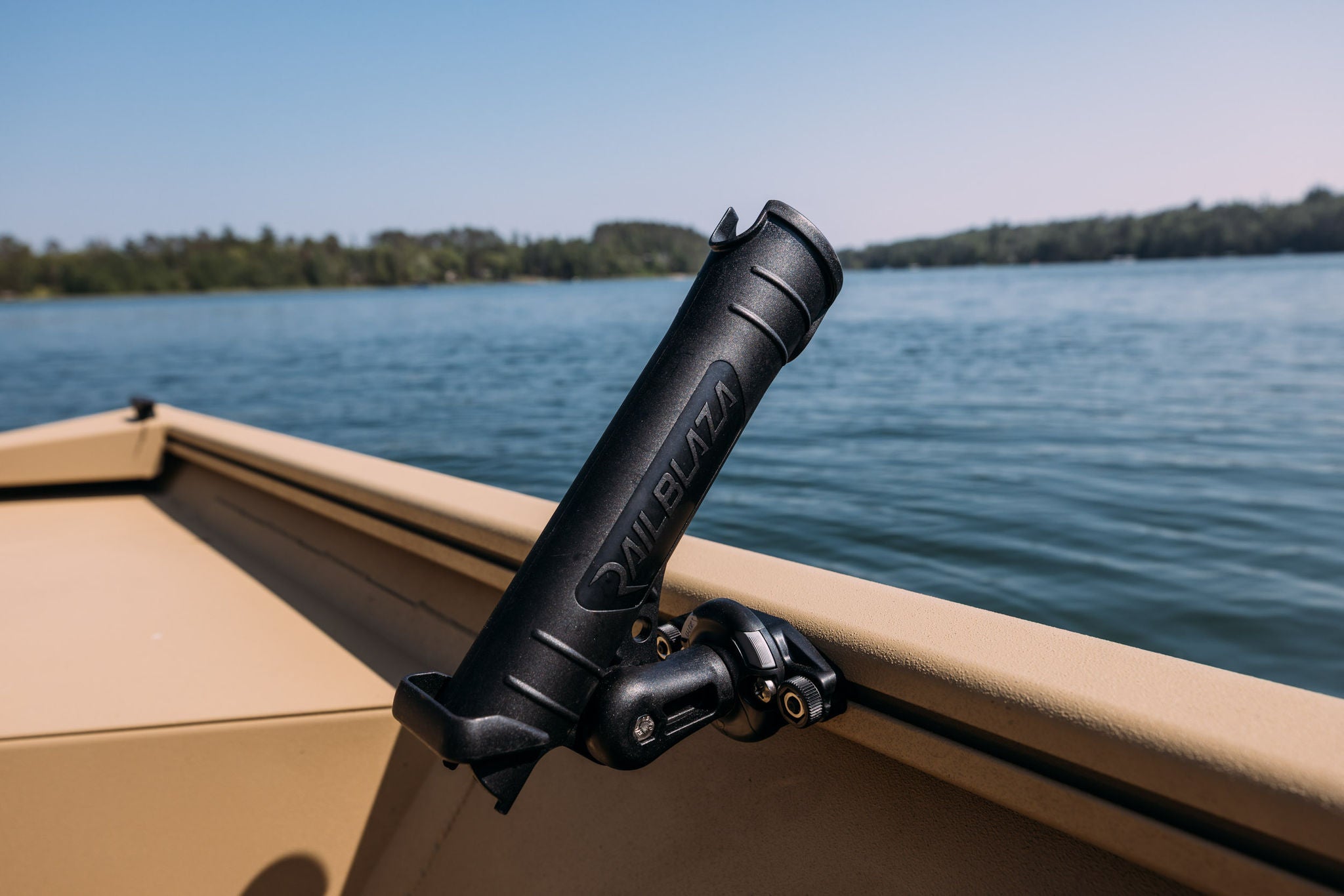

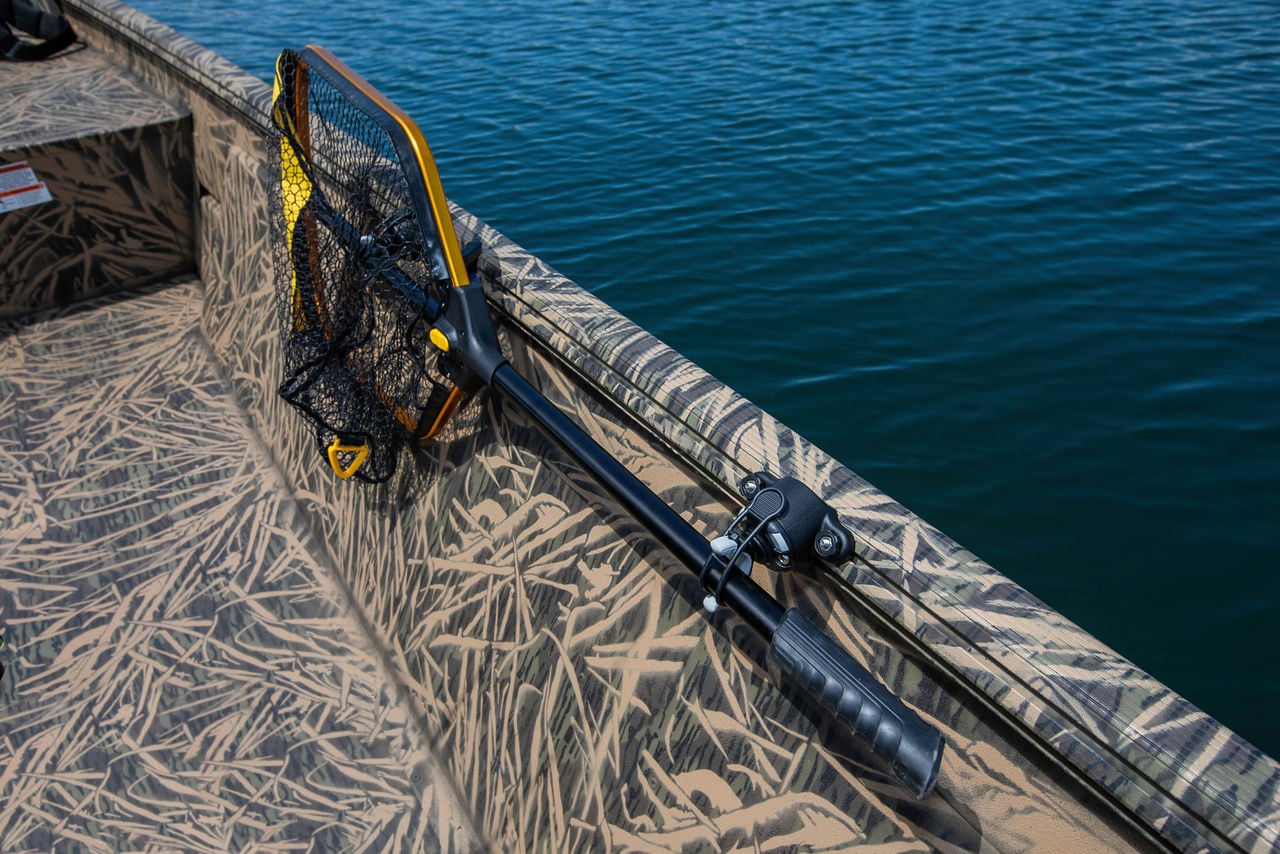

SUREMOUNT GUNNEL SYSTEM

The SureMount side mount accessory allows you to slide boat accessories along the gunnel for perfect placement.

Length Overall

16'

Max HP

40

Persons Capacity

4

Beam

80"

Deadrise

3.5°

Transom Height

20"

Chine Width

60"

Side Depth

21"

Boat/Motor/Trailer Height

5' 8"

Boat/Motor/Trailer Length

18' 6"

Boat/Motor/Trailer Width

6' 8"

Aluminum Gauge Bottom

.100"

Aluminum Gauge Sides

.100"

Aluminum Gauge Transom

.100"

Fuel Capacity

Portable

Maximum Weight Capacity

1,041 lbs

Maximum Horsepower

40

Minimum Horsepower

20

Weight (dry, no engine)

672 lbs

Weight Boat (max engine, dry)

932 lbs

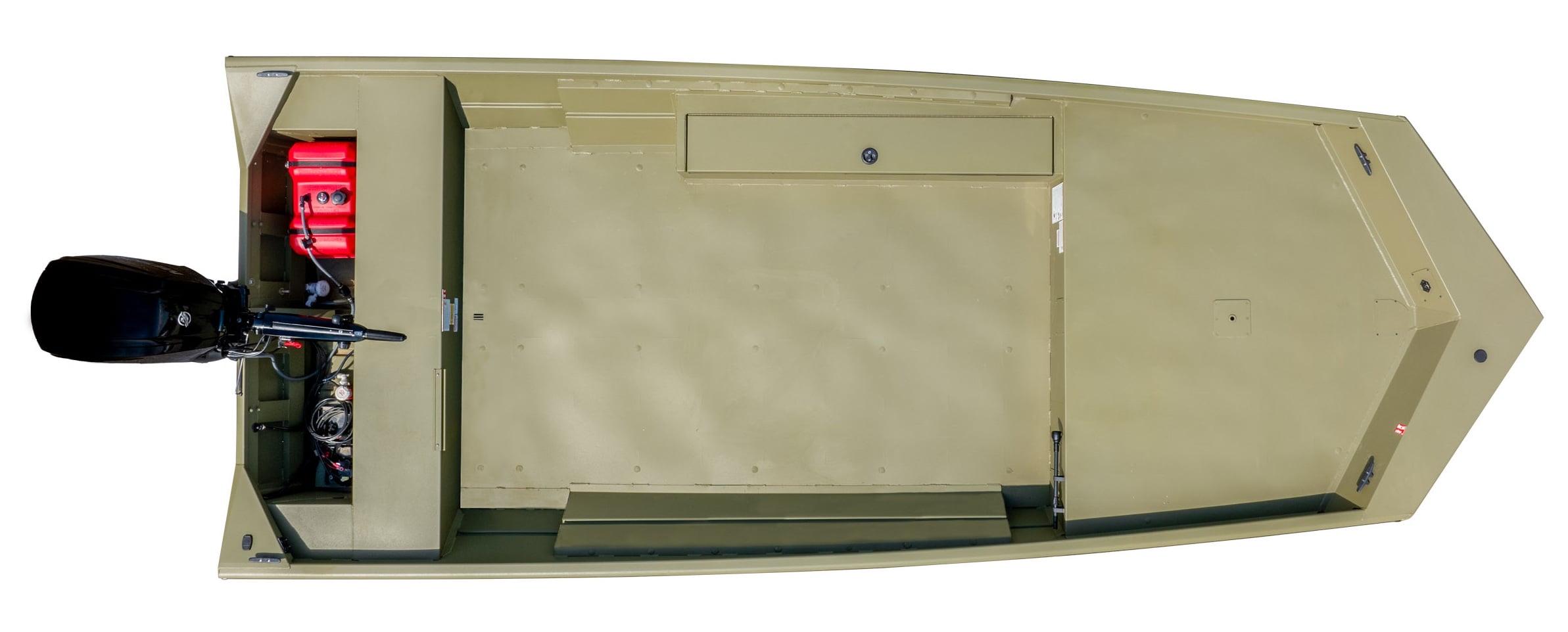

Floorplan

View all

Exterior Features

0 Eyes, stainless steel (bow & stern) Gunnel, extruded w/lock track system Hull, aluminum, all-welded Keel, extruded full length, welded (center) Paint Process, Enamel Rib construction, cross & side Ribs, extruded, extra strength Spray rails, formed Strakes, formed 1-1/4" (6)

Flooring

Aluminum floor, flat

Interior Features

Wood-free construction Lanyard, ignition stop switch Level flotation Side panels

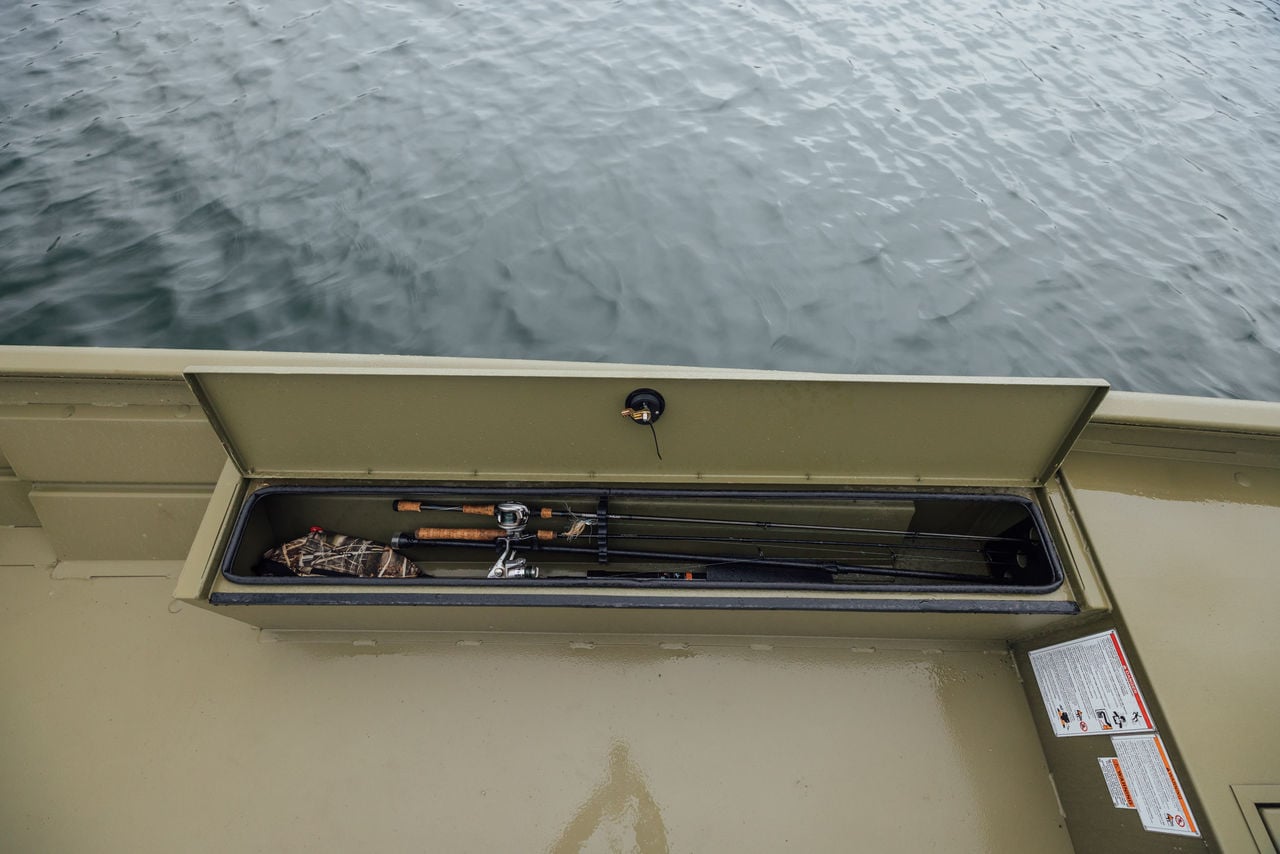

Rod Storage

Rod rack, quick access system (port) (holds up to 3 full-size rods)

Seating

Pedestal floor base (bow)

Storage/Convenience

Platform, low (bow)

Trailer

Basic 1800LB Bunk Painted Black Trailer
Floorplan

View all

Standard Colors

Marsh Tan exterior & interior Olive Drab exterior & interior

Premium Colors

Mossy Oak Break-Up exterior & interior Mossy Oak Shadowgrass Blades exterior & interior

Interior Coating

Crest-Liner interior coating

Engine

Mercury 30ELHPT EFI FourStroke Mercury 40ELHPT FourStroke w/Advanced Tiller Handle Mercury 40ELPT EFI FourStroke Mercury Jet 40ELPT EFI FourStroke (Requires Jet modification & transom riser)

Packages

Convenience Package

Console/Instrumentation

Console, aluminum

Seating

Seat base, additional (bow) (1) Seat Clip (male) Tempress Seat, Mossy Oak Shadowgrass Blades w/seat clip (requires male seat clip) Tempress Seat, Mossy Oak Shadowgrass Blades w/pedestal Tempress Seat, Mossy Oak Shadowgrass Blades w/pedestal & base, locking (2) (cockpit)

Accessories

Spray deflector Transducer bracket, welded Storage compartment w/ dry storage tub Battery charger 1 bank Transom saver Battery charger 2 bank Gunbox/Rod Locker 53" Sponson pods Jet modification Livewell, 16 gal. aerated (Requires Convenance package)

Trailer

Basic 1800LB Bunk Painted Black Trailer Basic 1800LB Vinyl Bunk Galvanized Trailer

Trailer Accessories

Tie down, ratcheting mounted pair Spare Tire, w/Black Mount(ST175/80R13C)1.5X3 Spare Tire, w/Galv Mount(ST175/80R13C) 1.X3

Limited Lifetime Warranty

Crestliner's longstanding promise to deliver superior durability, exceptional design and unmatched value is a commitment we don't take lightly. As part of that commitment, we stand by our product with a warranty that is unmatched by competitors. For additional information about our warranty, and how to transfer coverage to a new owner, see the list of Warranty Documents.

Limited Lifetime Warranty

Crestliner boats, from model year 2010 and newer, have a warranty that may be transferred to subsequent owners. To transfer any remaining portions of your Crestliner warranty, please register your pre-owned Crestliner. To register your warranty information with Crestliner, print and complete the Warranty Transfer form and mail it in to Crestliner within 90 days of purchase, along with a copy of the Bill of Sale or Title, and a $250 warranty transfer fee. The check or money order should be made payable to Crestliner.

Warranty on Crestliner CR Jon boats may not be transferred.

For more information on warranties, contact your local Crestliner dealer.
