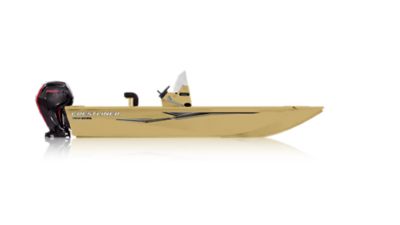

1870 RB-X

Starting At $32,773*

1870 RB-X

1870 RB-X

Starting At $32,773*

BUILD & PRICE

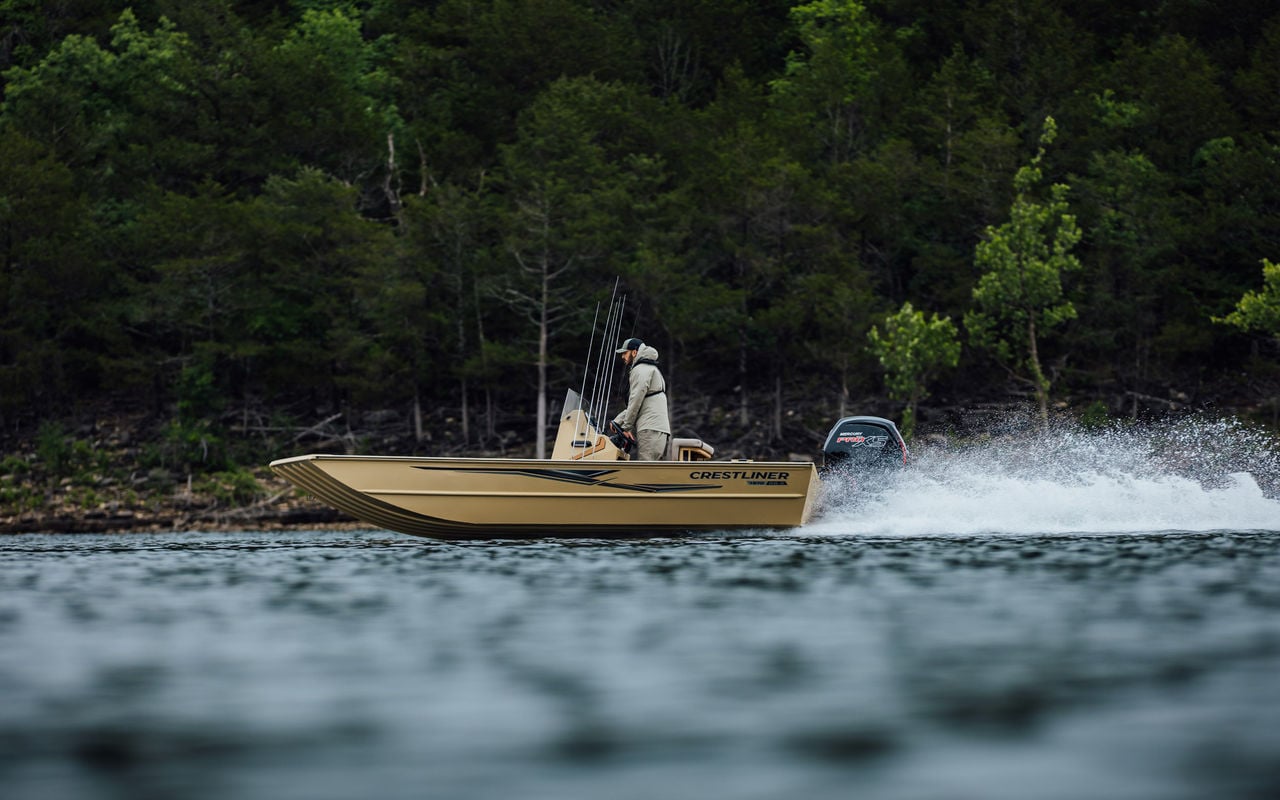

The 1870 RB-X delivers the versatility serious anglers need in a size that's easy to own, tow, and fish. From backwater bays to coastal flats and inland lakes, it combines practical fishing features, rugged construction, and exceptional value into one capable package that's ready for wherever your weekends take you.

18' Length Overall
115 Max HP
7 Persons Capacity
96" Beam

FEATURES

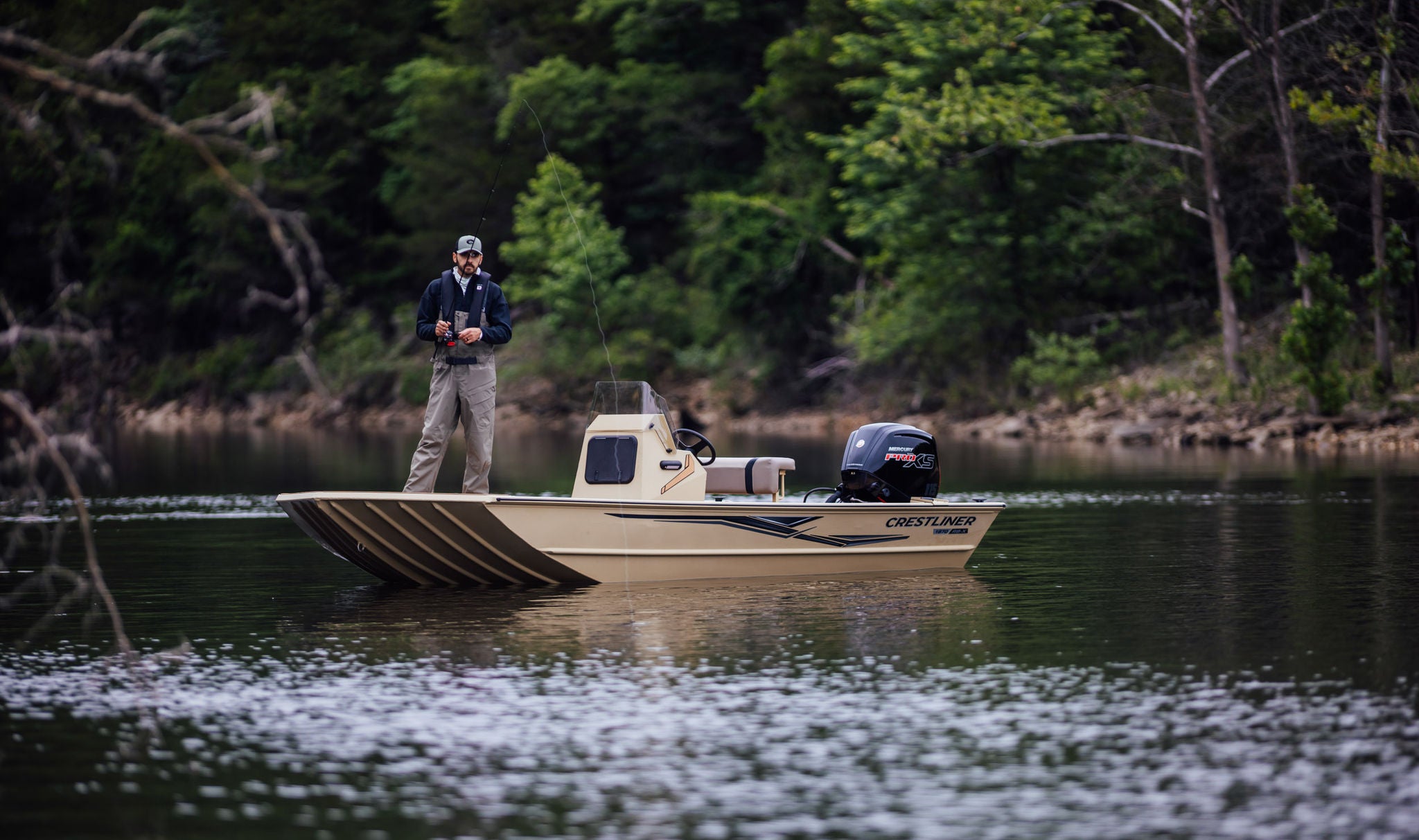

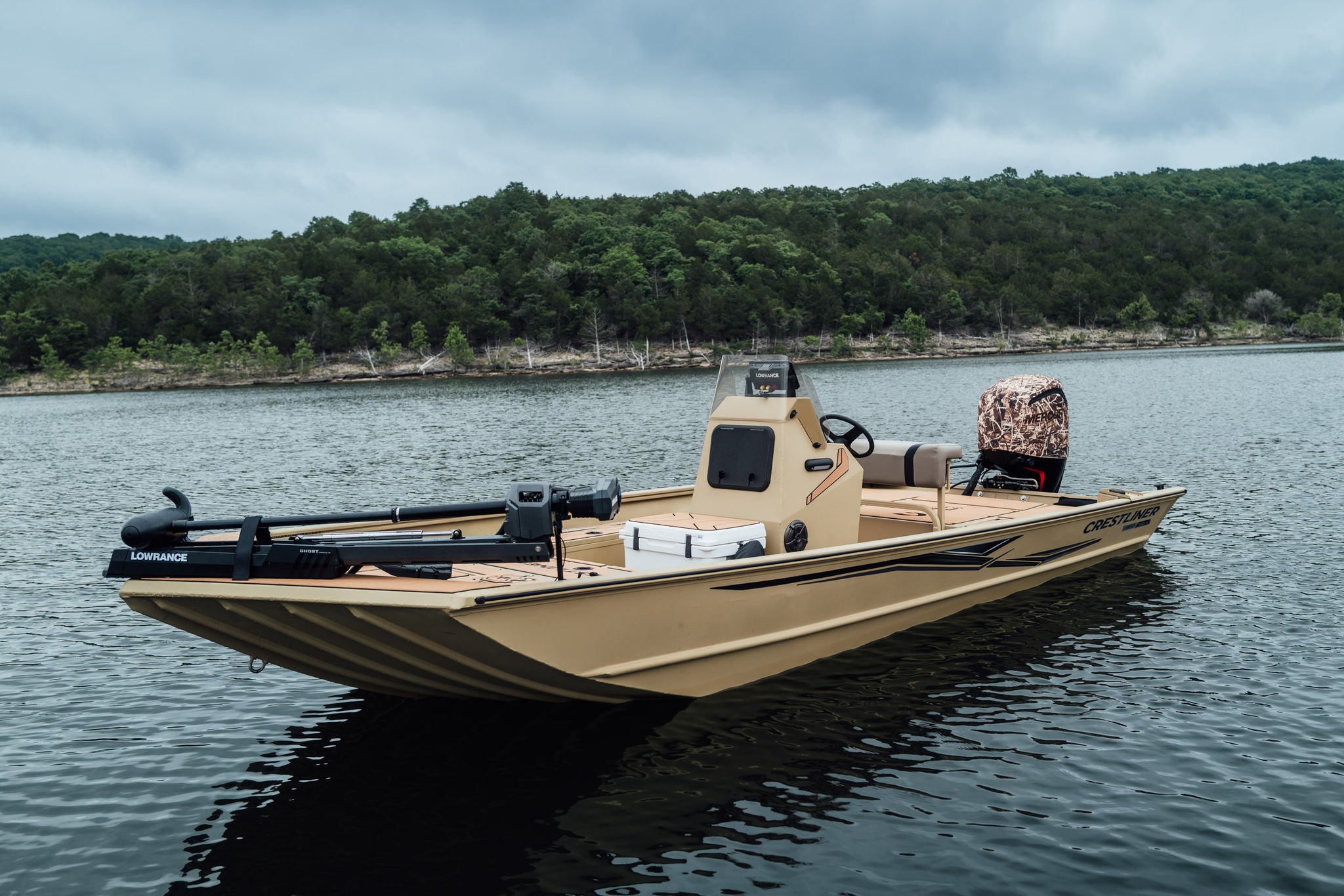

Crestliner RB-X 1870 Lifestyle image

HEAVY-DUTY .125" ALUMINUM HULL

Built with rugged .125" aluminum construction for lasting durability and confidence in demanding conditions.

Crestliner RB-X 1870 Detail image

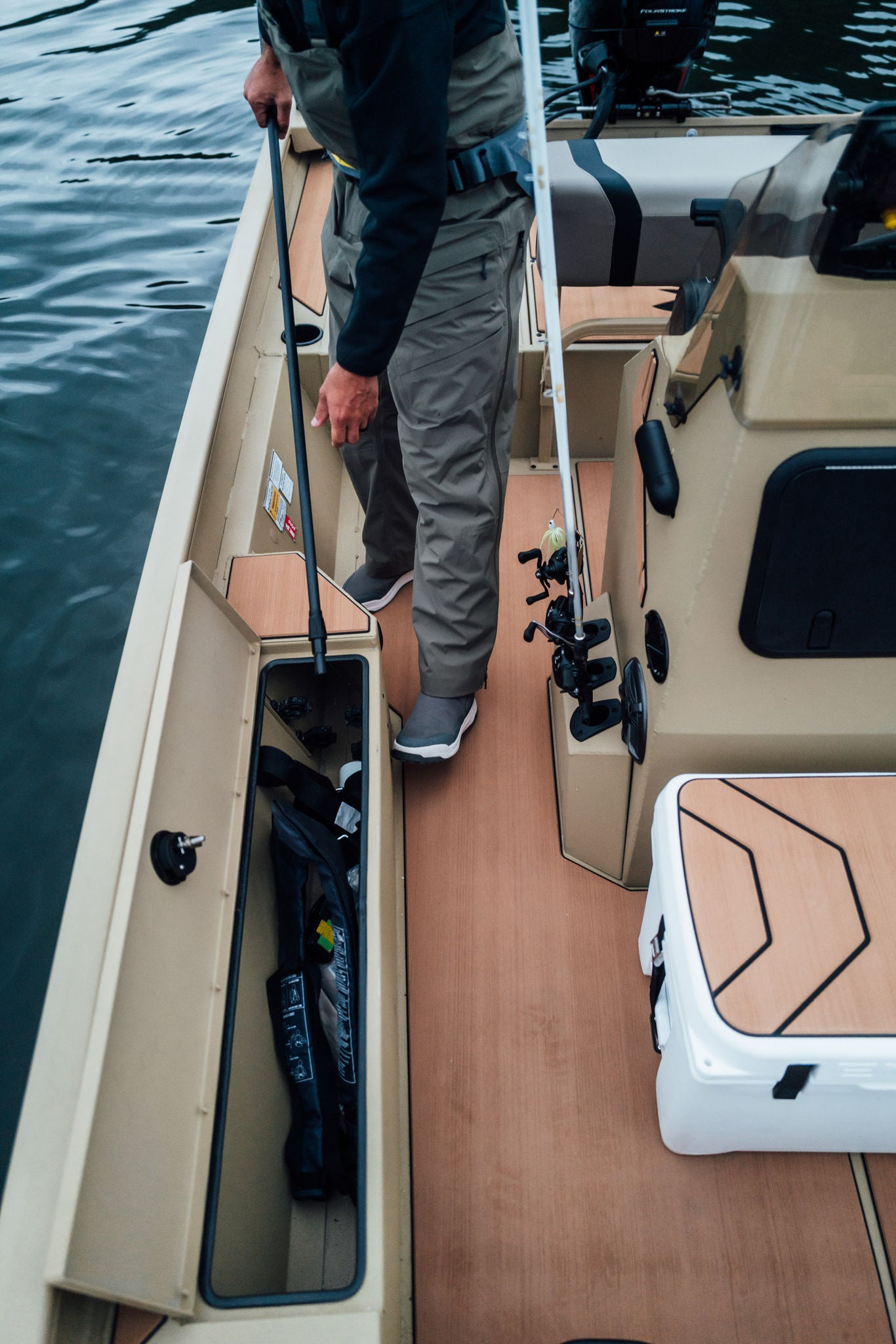

ENCLOSED ROD STORAGE

Port and starboard enclosed rod storage securely accommodates rods over 8 feet, keeping gear protected and organized.

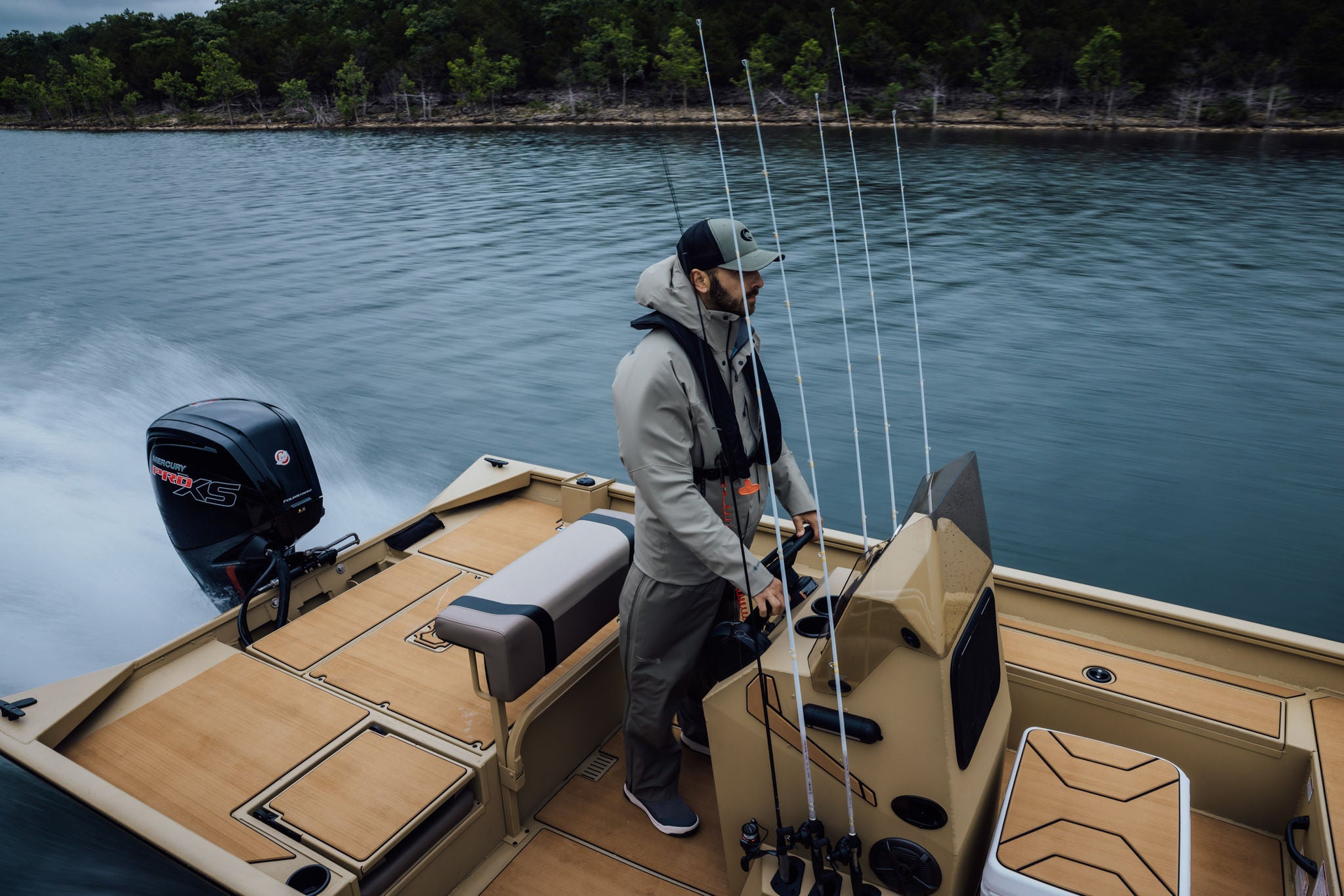

Crestliner RB-X 1870 Detail image

STANDARD REAR JUMP SEATS

Comfortable fold-down jump seats provide extra seating when you need it and maximize fishing space when you don't.

Length Overall

18'

Max HP

115

Persons Capacity

7

Beam

96"

Deadrise

3.5°

Transom Height

20"

Chine Width

70"

Side Depth

24"

Boat/Motor/Trailer Height

6' 10"

Boat/Motor/Trailer Length

21'

Boat/Motor/Trailer Width

8'

Aluminum Gauge Bottom

0.125"

Aluminum Gauge Sides

0.100"

Aluminum Gauge Transom

0.100"

Fuel Capacity

19 gal.

Maximum Weight Capacity

1100 lbs

Maximum Horsepower

115

Minimum Horsepower

90

Weight Boat (max engine, dry)

1623 lbs

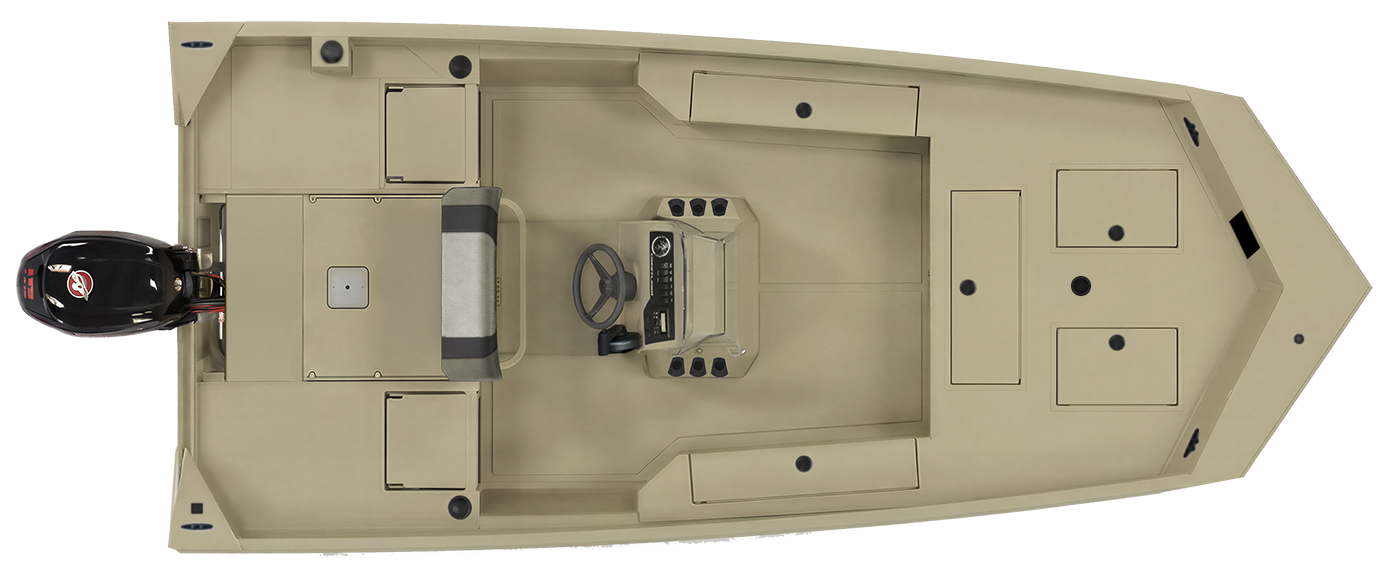

Floorplan

View all

Exterior Features

Cleats, black composite (4) Eyes, stainless steel (bow & stern) Gunnel, extruded w/SureMount track system Hull, aluminum, all-welded Keel, extruded full length, welded (center) Paint Process, Enamel Rib construction, cross & side Ribs, extruded, extra strength Spray rails, formed Strakes, formed 1-1/4" (6)

Accessories

Trolling motor outlet, w/6-gauge wiring harness (bow)

Console/Instrumentation

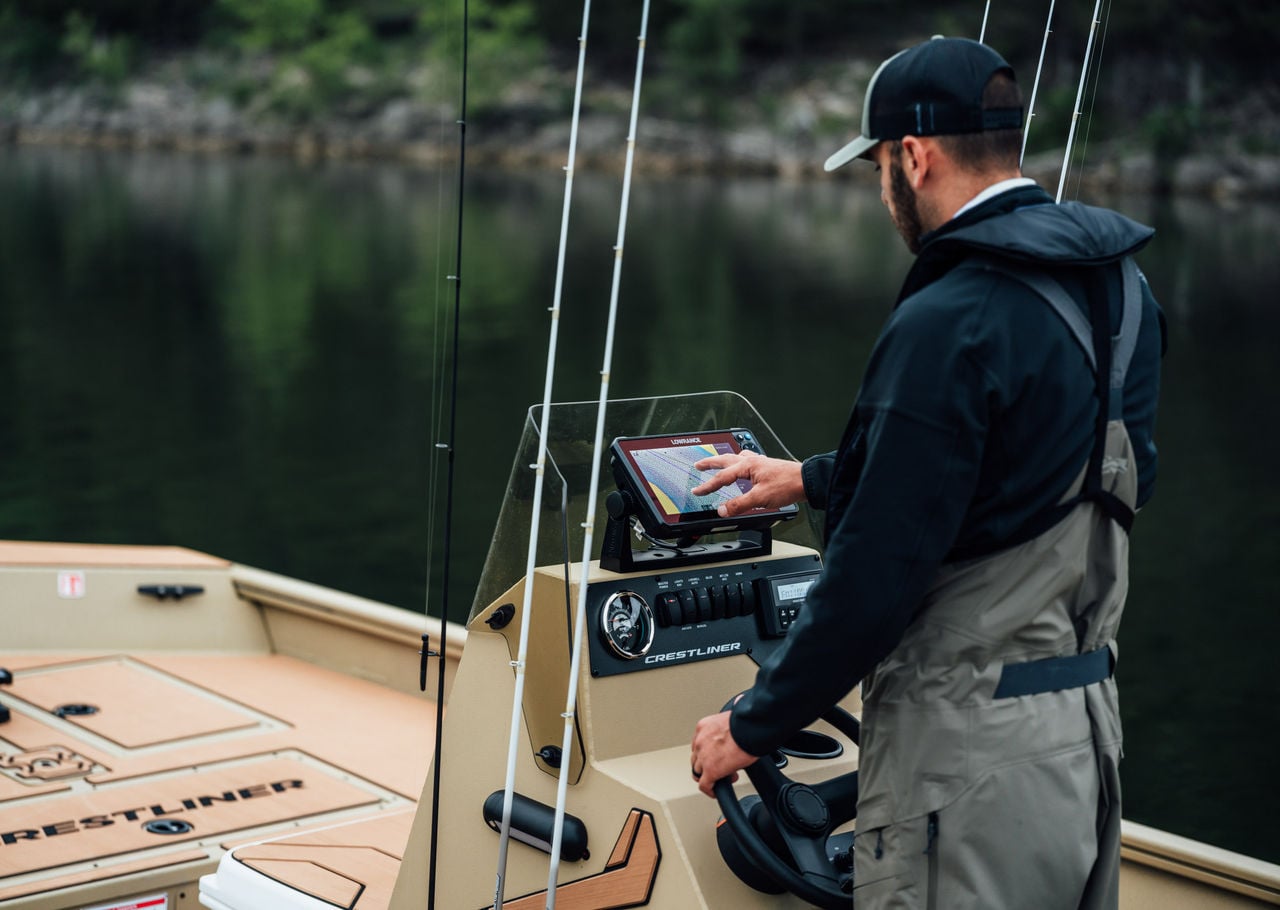

Console, center mounted aluminum w/6 vertical rod holders, rocker switches, 12V power outlet, space for top mount electronics, 2 drink holders & 2 grab handles Master power switch Speedometer, fuel, tachometer and trim gauges No-feedback steering Steering wheel, black composite Horn Windscreen

Flooring

Aluminum floor, flat

Interior Features

Bilge pump (manual) Compartment seals Lanyard, ignition stop switch Level flotation Light, navigation Side panels Wood-free construction

Livewells/Baitwells

Livewell, 21 gal. aerated (bow) 36Lx13Wx12H

Rod Storage

Rod rack, vertical (console) (holds 6 rods) Rod/Gear storage, lockable (port & starboard) (8' capacity)

Seating

Pedestal floor bases (2) Leaning post w/cushion Seat, jump seats (2) (stern)

Storage/Convenience

Storage compartments w/compression latches (port & starboard, bow) Platform (bow) Platform w/lid & service compartment (stern)

Trailer

Basic 2400LB Bunk Painted Black Trailer
Floorplan

View all

Standard Colors

Olive Drab exterior & interior Marsh Tan exterior & interior

Premium Colors

Mossy Oak Break-Up exterior & interior Mossy Oak Shadowgrass Blades exterior & interior Blue exterior, Bright White interior Black exterior, Bright White interior Silver exterior, Bright White interior Gun Metal exterior, Bright White interior Candy Apple Red exterior, Bright White interior Bright White exterior, Bright White interior

Engine

Mercury 115ELPT EFI FourStroke Mercury 90ELPT EFI FourStroke Mercury 115ELPT Pro XS FourStroke

Mercury Options

Pre-Rig 25HP & Up

Packages

Essentials Package

Console/Instrumentation

Hydraulic steering Tilt steering

Flooring

SoftStep reFLEX Flooring w/Crest-Liner interior, gray SoftStep reFLEX Flooring w/Crest-Liner interior, tan

Seating

Pro fishing seat w/pedestal, tan (each additional)

Accessories

Sponson pods Battery charger 3 bank Cooler (front of console) Bilge pump (automatic) Transducer bracket, welded Trim switch (bow) Rod Trees for Enclosed Side Rod Storage (starboard) Rod Trees for Enclosed Side Rod Storage (port) Battery Charger, 4 bank Battery charger 2 bank Trolling motor battery storage (36V system compatible) (stern) Transom saver Washdown system

Trailer

Basic 2200LB Vinyl Bunk Galvanized Trailer Basic 2200LB Bunk Painted Black Trailer Basic 2200LB Bunk Painted Black Trailer w/alum wheels

Trailer Accessories

Spare tire, Mag w/Galv mount Spare Tire, w/black Mount(ST175/80R13C)2X4 Tie down, ratcheting mounted pair Spare Tire, w/Galv Mount(ST175/80R13C) 2X4

Limited Lifetime Warranty

Crestliner's longstanding promise to deliver superior durability, exceptional design and unmatched value is a commitment we don't take lightly. As part of that commitment, we stand by our product with a warranty that is unmatched by competitors. For additional information about our warranty, and how to transfer coverage to a new owner, see the list of Warranty Documents.

Limited Lifetime Warranty

Crestliner boats, from model year 2010 and newer, have a warranty that may be transferred to subsequent owners. To transfer any remaining portions of your Crestliner warranty, please register your pre-owned Crestliner. To register your warranty information with Crestliner, print and complete the Warranty Transfer form and mail it in to Crestliner within 90 days of purchase, along with a copy of the Bill of Sale or Title, and a $250 warranty transfer fee. The check or money order should be made payable to Crestliner.

Warranty on Crestliner CR Jon boats may not be transferred.

For more information on warranties, contact your local Crestliner dealer.
