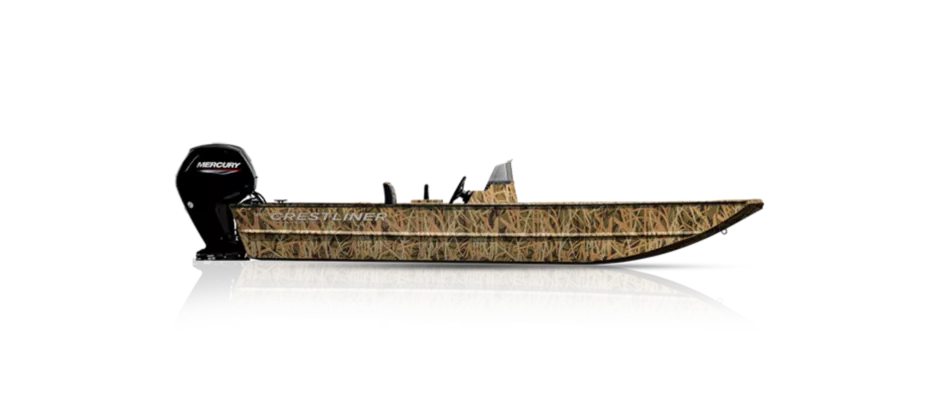

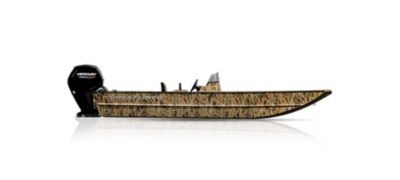

1860 RETRIEVER SC

Starting At $28,270*

1860 RETRIEVER SC

1860 RETRIEVER SC

Starting At $28,270*

BUILD & PRICE

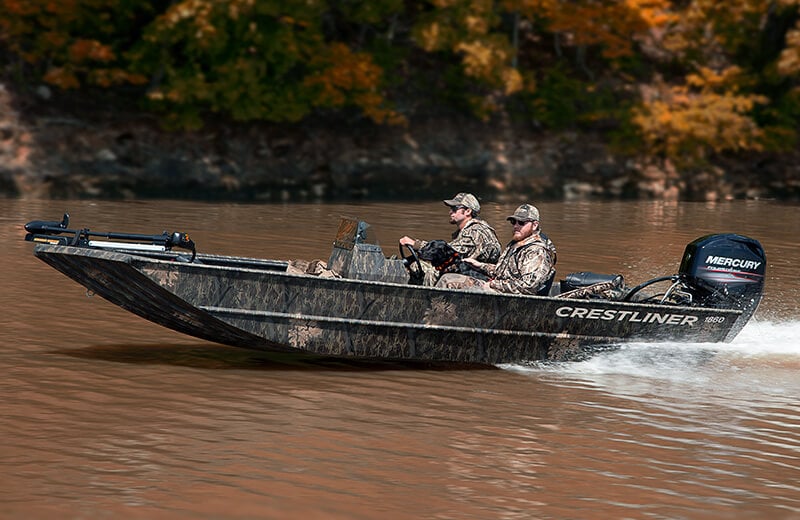

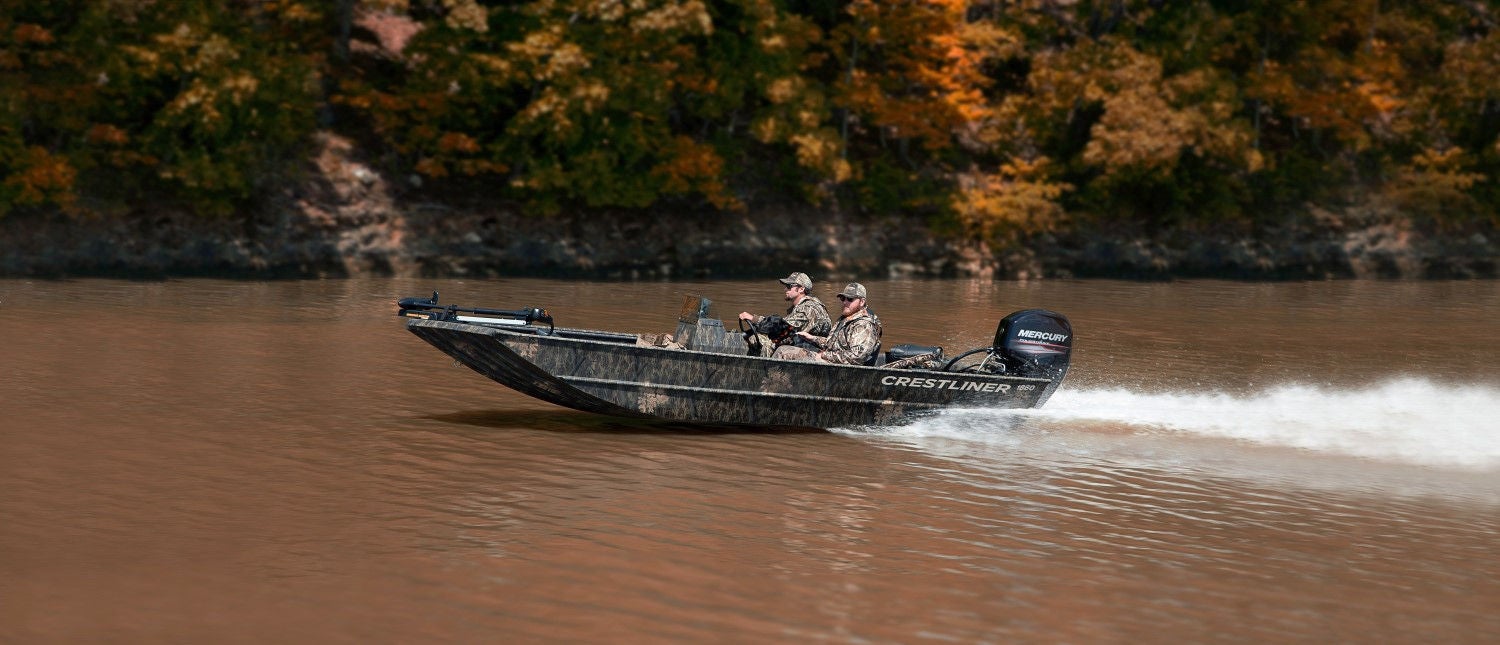

With this all-welded hunting or fishing boat, you’ll definitely have the upper hand on both birds and fish. Featuring either a tall center console or side console, fold-down seats, tons of storage for both rods and gear, a 16-gallon livewell and plenty of casting room, the 1860 Side Console puts you at a distinct advantage.

18' Length Overall
90 Max HP
7 Persons Capacity
85" Beam

FEATURES

Crestliner 1860 SC Retriever Image

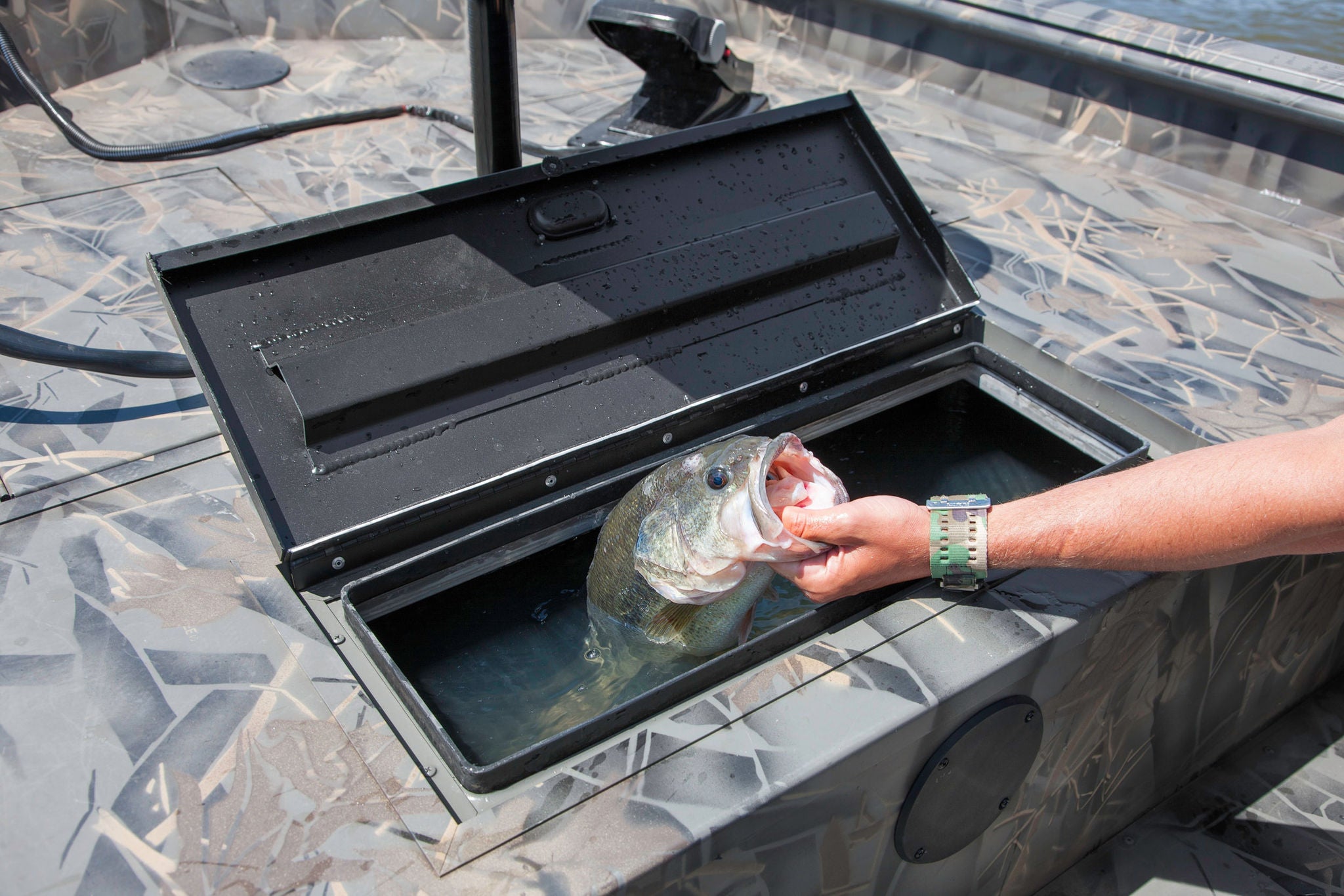

16 Gallon Aerated Livewell

A standard 16-gallon livewell is located in the center of the bow for quick and easy access.

Crestliner 1860 Retriever SC

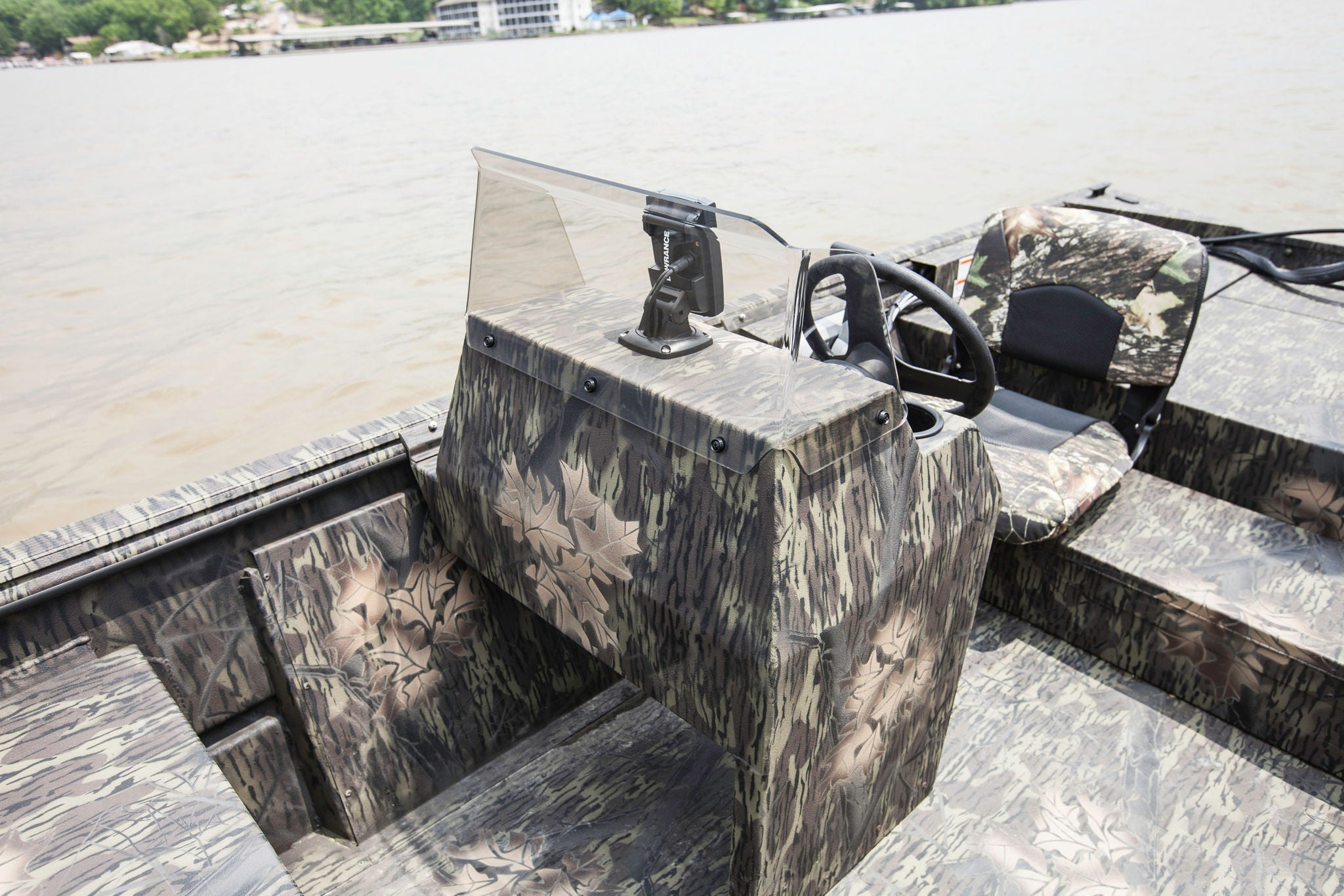

Aluminum Console

The aluminum side console includes three vertical rod holders.

Crestliner 1860 SC Retriever Image

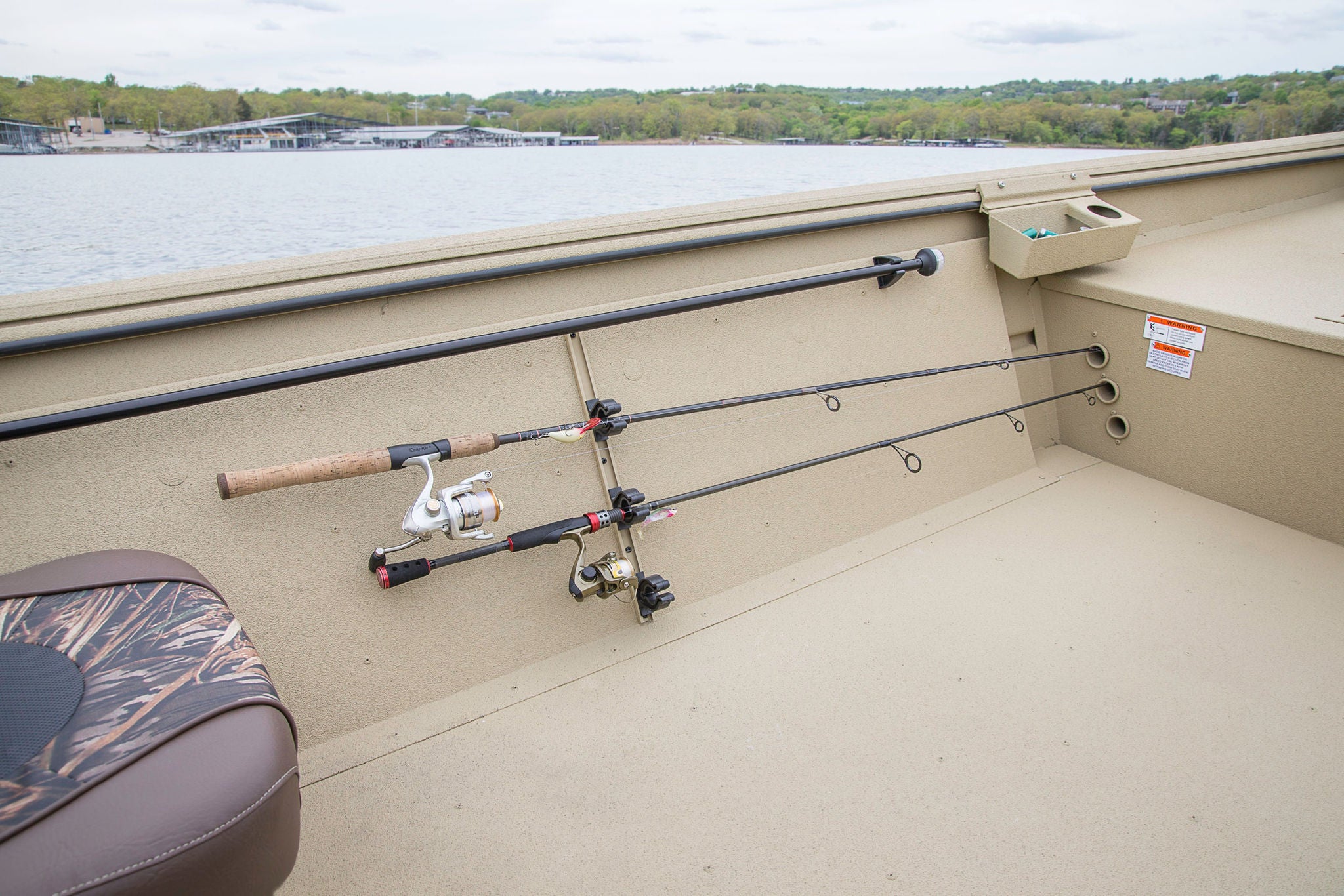

Rod Storage

Portside and console rod racks give you plenty of space to store your rods. Port rod rack holds four rods; vertical rod holders on the console hold three (SC) or six (CC).

Length Overall

18'

Max HP

90

Persons Capacity

7

Beam

85"

Deadrise

3.5°

Transom Height

20"

Chine Width

60"

Side Depth

24"

Boat/Motor/Trailer Height

6' 10"

Boat/Motor/Trailer Length

21'

Boat/Motor/Trailer Width

7'1"

Aluminum Gauge Bottom

0.100"

Aluminum Gauge Sides

0.100"

Aluminum Gauge Transom

0.100"

Fuel Capacity

19 gal.

Maximum Weight Capacity

1,578 lbs

Maximum Horsepower

90

Minimum Horsepower

60

Weight (dry, no engine)

974 lbs

Weight Boat (max engine, dry)

1337 lbs

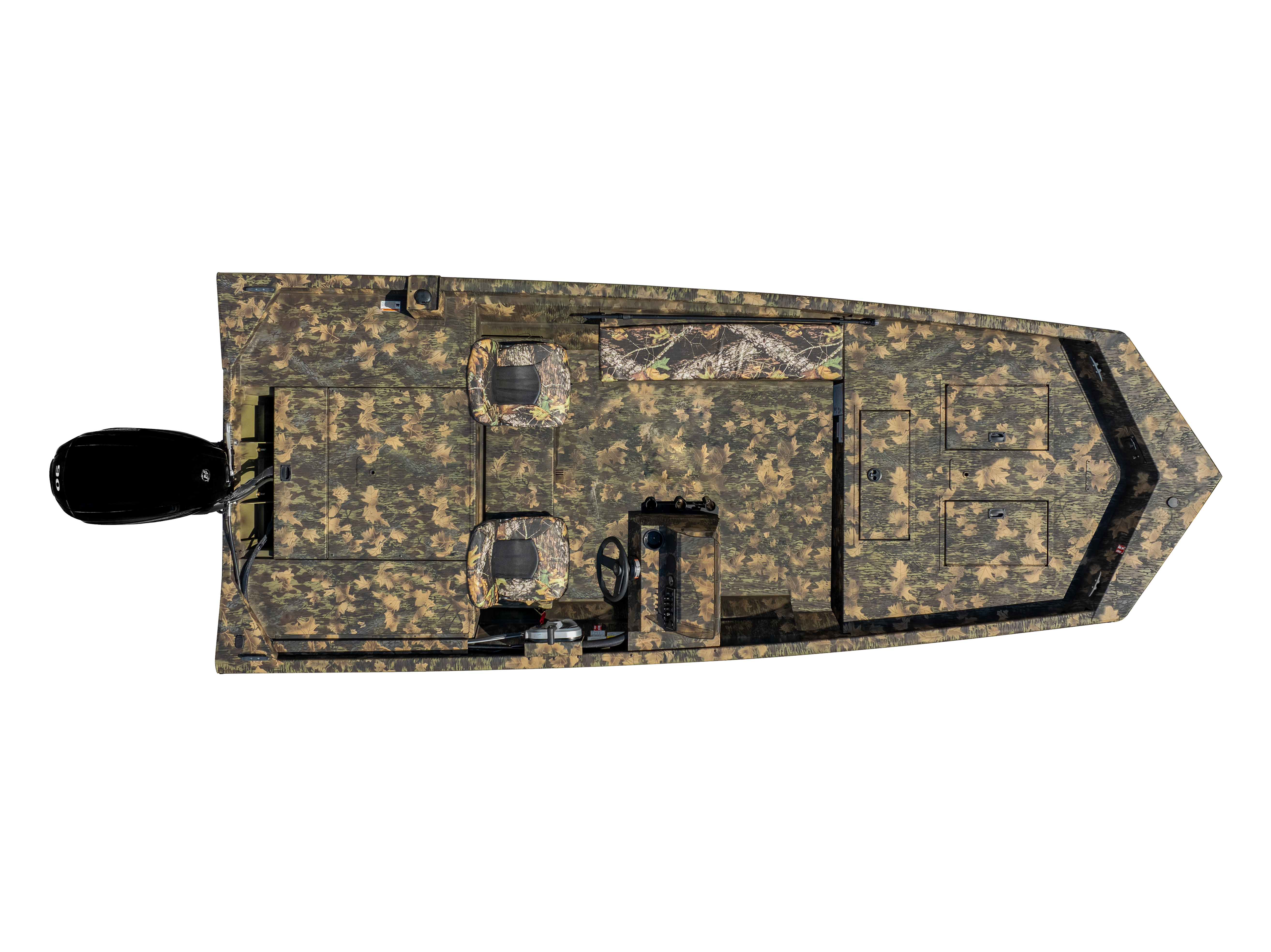

Floorplan

View all

Exterior Features

0 Cleats, black composite (4) Eyes, stainless steel (bow & stern) Gunnel, extruded w/lock track system Hull, aluminum, all-welded Keel, extruded full length, welded (center) Paint Process, Enamel Rib construction, cross & side Ribs, extruded, extra strength Spray rails, formed Strakes, formed 1-1/4" (6)

Accessories

Trolling motor outlet, w/6-gauge wiring harness (bow)

Console/Instrumentation

Console, forward mounted aluminum w/3 vertical rod holders, toggle switches, 12V power outlet, space for top mount electronics, drink holder & grab handle Master power switch Fuel gauge No-feedback steering Steering wheel, black composite

Flooring

Aluminum floor, flat

Interior Features

Bilge pump (manual) Compartment seals Lanyard, ignition stop switch Level flotation Light, navigation Side panels Wood-free construction

Livewells/Baitwells

Livewell, 16 gal. aerated (bow)(42Lx10Wx9D)

Rod Storage

Rod rack, quick access system (port) (holds 3 full-size rods) Rod rack, vertical (console) (holds 3 rods)

Seating

Pedestal floor bases (2) Seat, Tempress, Mossy Oak Shadowgrass (2)

Storage/Convenience

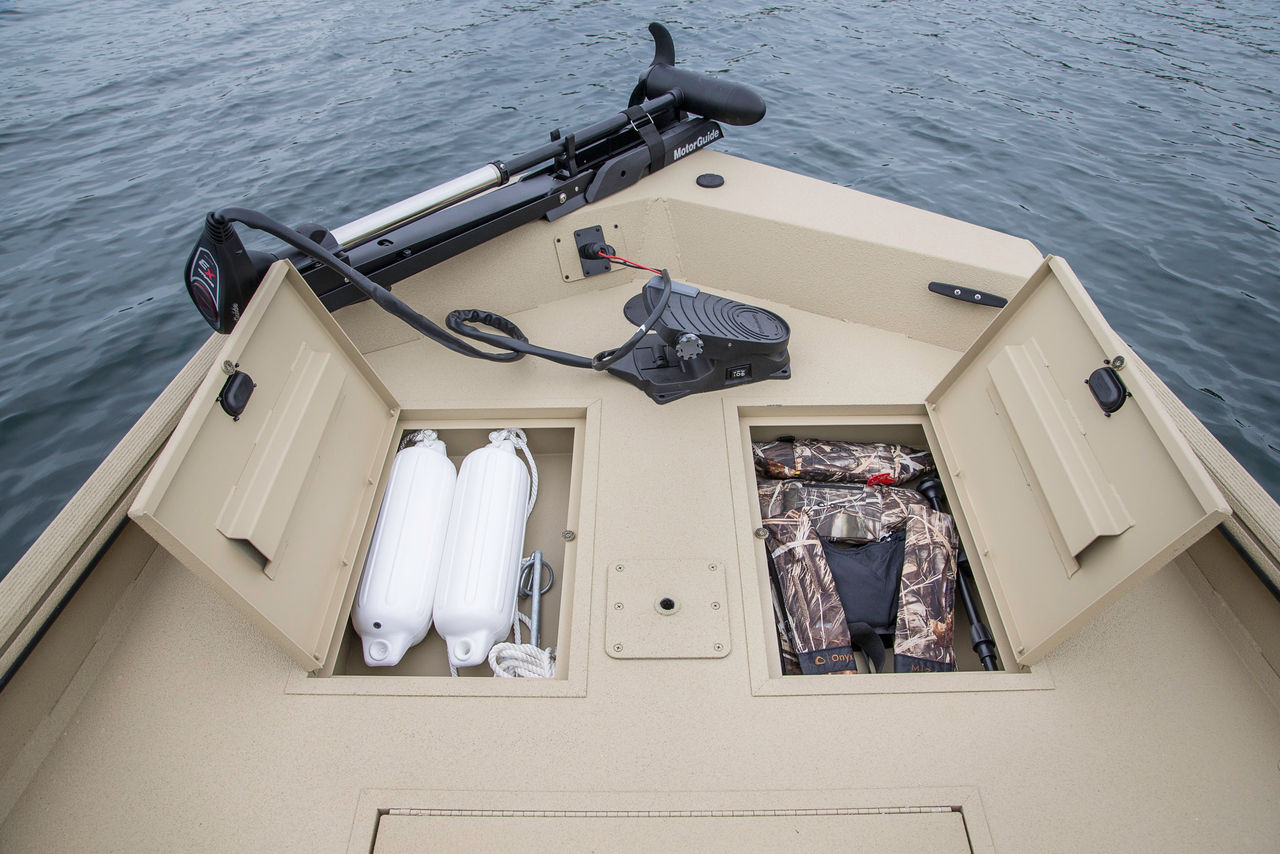

Platform (bow) Platform w/lid & service compartment (stern) Storage compartments w/compression latches (port & starboard, bow) Storage, under seat

Trailer

Basic 1800LB Bunk Painted Black Trailer
Floorplan

View all

Standard Colors

Marsh Tan exterior & interior Olive Drab exterior & interior

Premium Colors

Mossy Oak Break-Up exterior & interior Mossy Oak Shadowgrass Blades exterior & interior

Interior Coating

Crest-Liner interior coating

Engine

Mercury Jet 40ELPT EFI FourStroke (Requires Jet modification & transom riser) Mercury 60ELPT EFI FourStroke Mercury Jet 80ELPT EFI FourStroke (Requires Jet modification or Jet modification w/27" transom option) Mercury Jet 65ELPT EFI FourStroke (Requires Jet modification or Jet modification w/27" transom option) Mercury 75ELPT EFI FourStroke Mercury 90ELPT EFI FourStroke

Packages

Gauge Package

Console/Instrumentation

Windscreen Horn

Seating

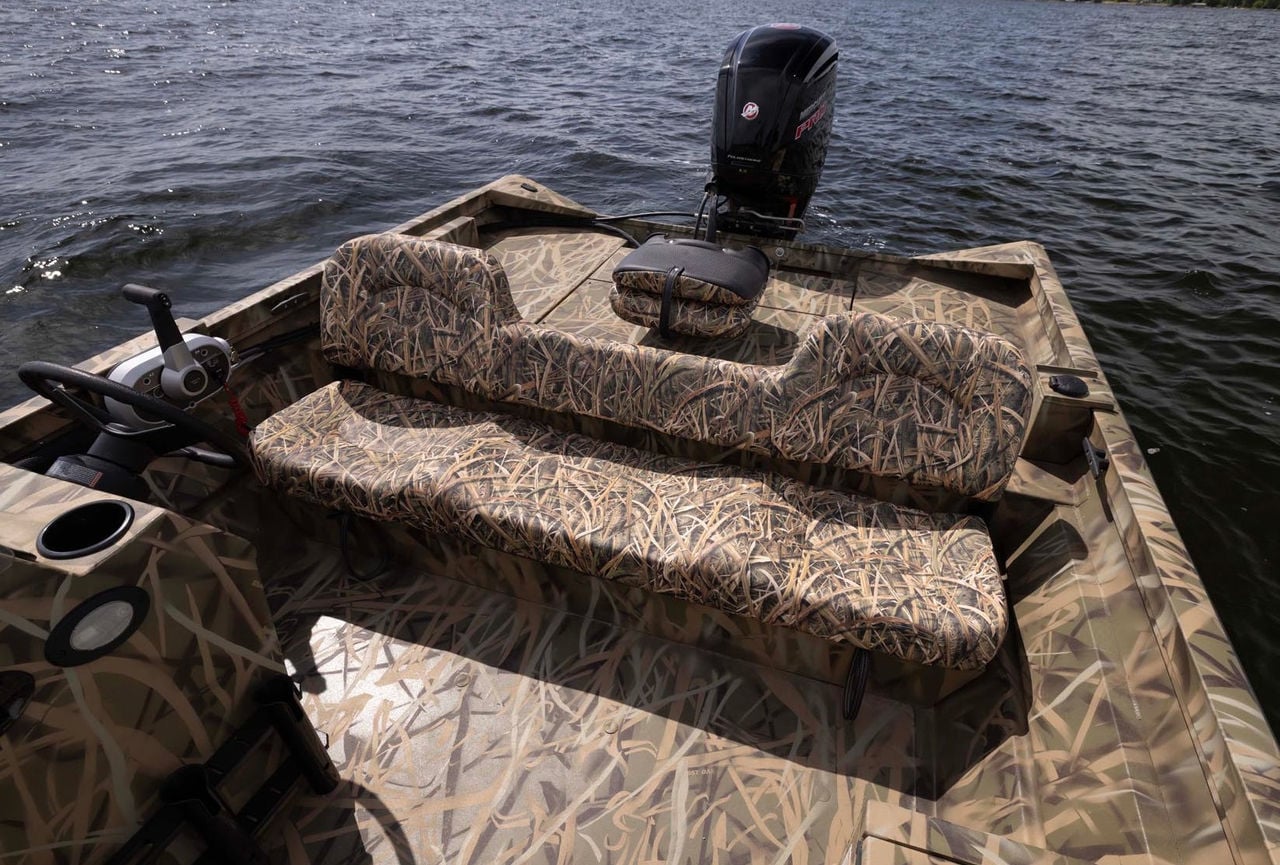

Seat Clip (male) Tempress Seat, Mossy Oak Shadowgrass Blades w/seat clip (requires male seat clip) Tempress Seat, Mossy Oak Shadowgrass Blades w/pedestal Bench Seat, Mossy Oak Shadowgrass Blades w/storage underneath (exchange 2 seats) Bench Seat, Mossy Oak Break-Up w/storage underneath (exchange 2 seats)

Accessories

Jet Modification w27” Transom (.125 hull gauge) Spray deflector Transducer bracket, welded Bilge pump (automatic) Trim switch (bow) Battery charger 1 bank Transom saver Battery charger 2 bank Hull Gauge .125 Sponson pods Jet modification Gunbox, 53" w/rod tubes & cushion (Mossy Oak Shadowgrass Blades) Gunbox, 53" w/rod tubes & cushion (Mossy Oak Break-Up) Jet modification w/ 27" transom

Fishing/Electronics

Hook 3x Fishfinder-fact Installed

Trailer

Basic 2200LB Bunk Painted Black Trailer

Trailer Accessories

Spare Tire w/Black Mount Spare Tire w/Galvanized mount Tie down, ratcheting mounted pair

Limited Lifetime Warranty

Crestliner's longstanding promise to deliver superior durability, exceptional design and unmatched value is a commitment we don't take lightly. As part of that commitment, we stand by our product with a warranty that is unmatched by competitors. For additional information about our warranty, and how to transfer coverage to a new owner, see the list of Warranty Documents.

Limited Lifetime Warranty

Crestliner boats, from model year 2010 and newer, have a warranty that may be transferred to subsequent owners. To transfer any remaining portions of your Crestliner warranty, please register your pre-owned Crestliner. To register your warranty information with Crestliner, print and complete the Warranty Transfer form and mail it in to Crestliner within 90 days of purchase, along with a copy of the Bill of Sale or Title, and a $250 warranty transfer fee. The check or money order should be made payable to Crestliner.

Warranty on Crestliner CR Jon boats may not be transferred.

For more information on warranties, contact your local Crestliner dealer.
