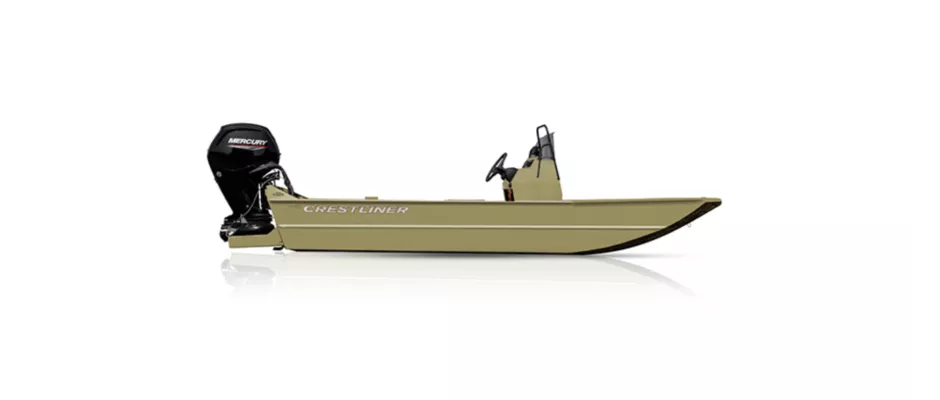

1760 RETRIEVER FCC

Starting At $31,438*

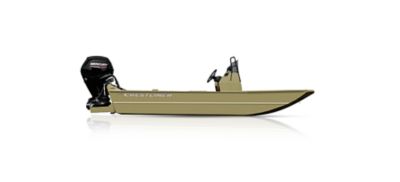

1760 RETRIEVER FCC

1760 RETRIEVER FCC

Starting At $31,438*

BUILD & PRICE

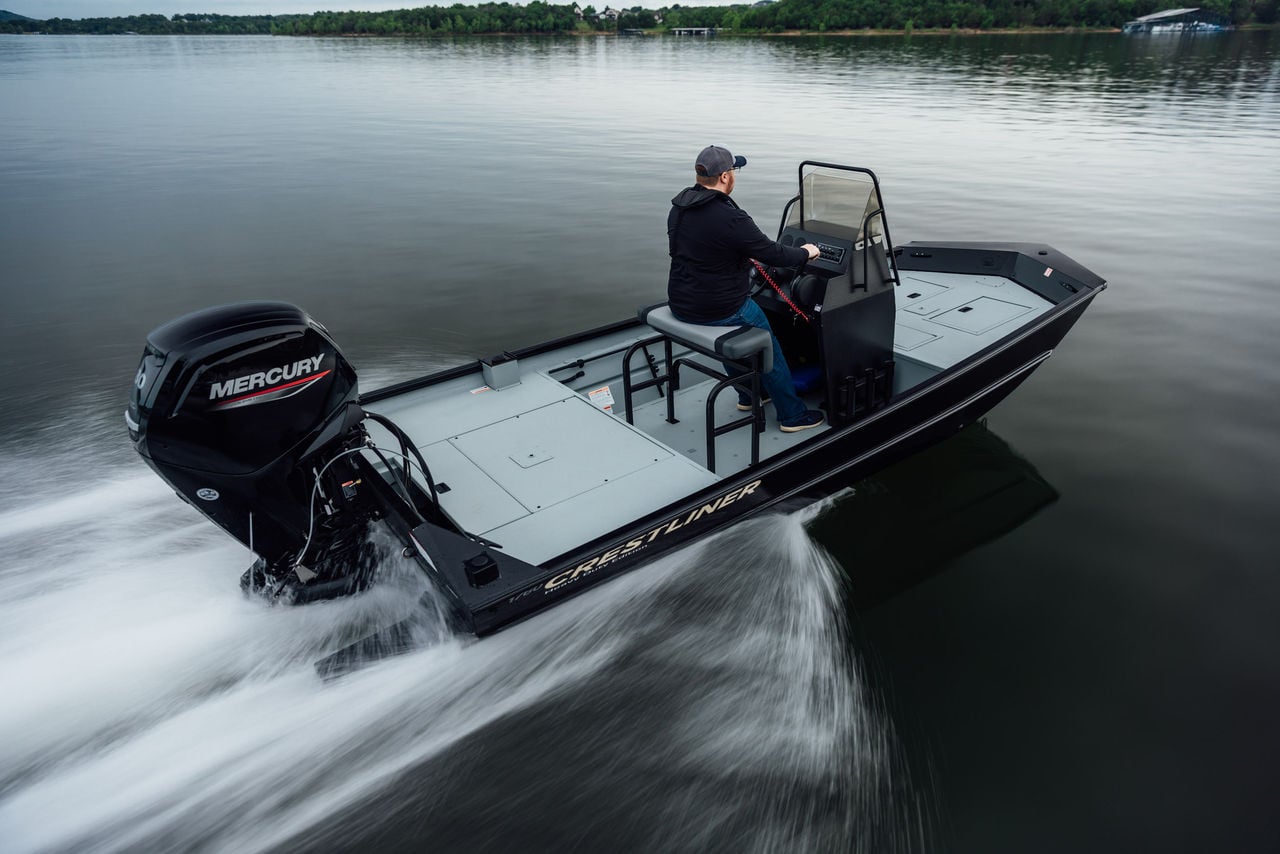

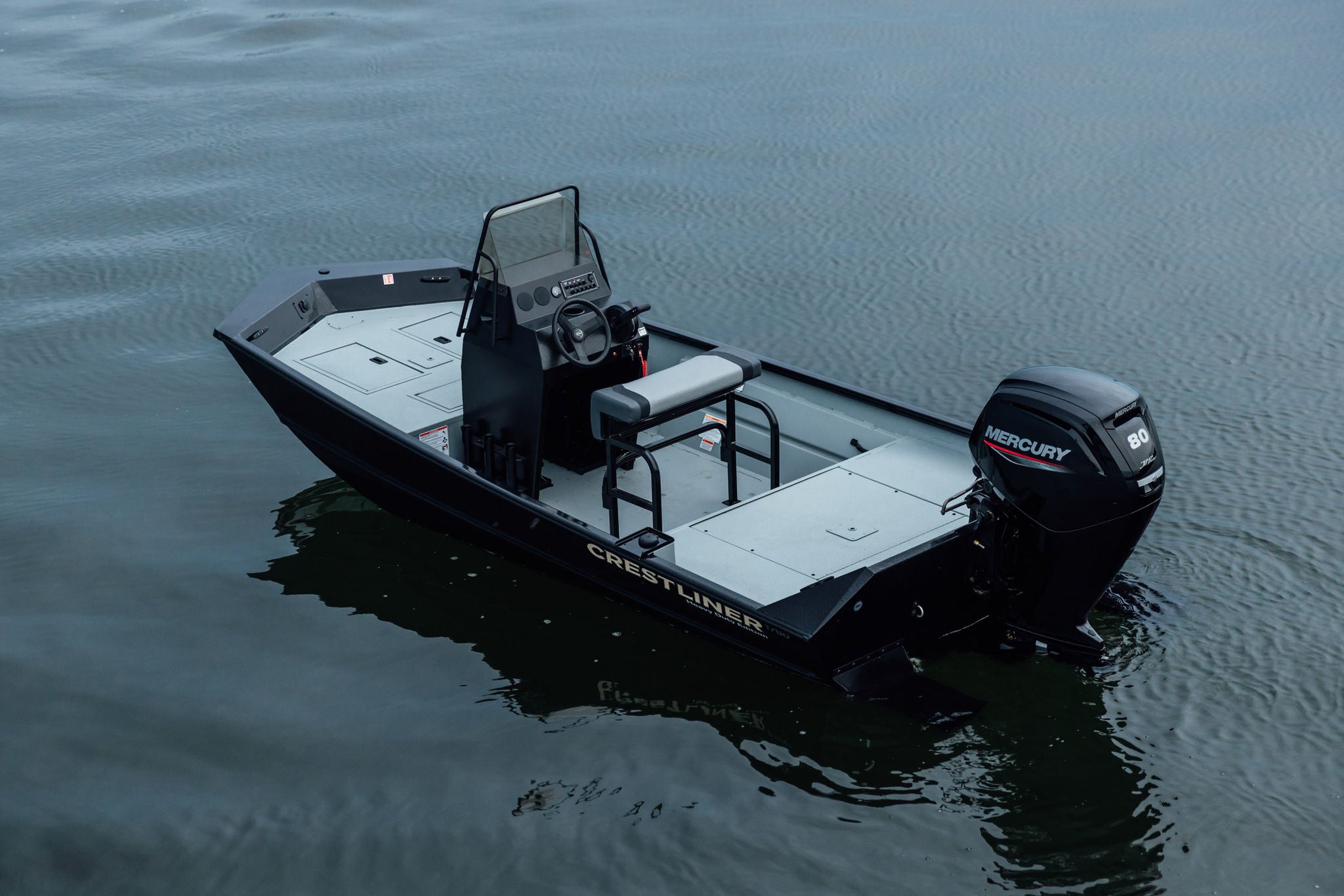

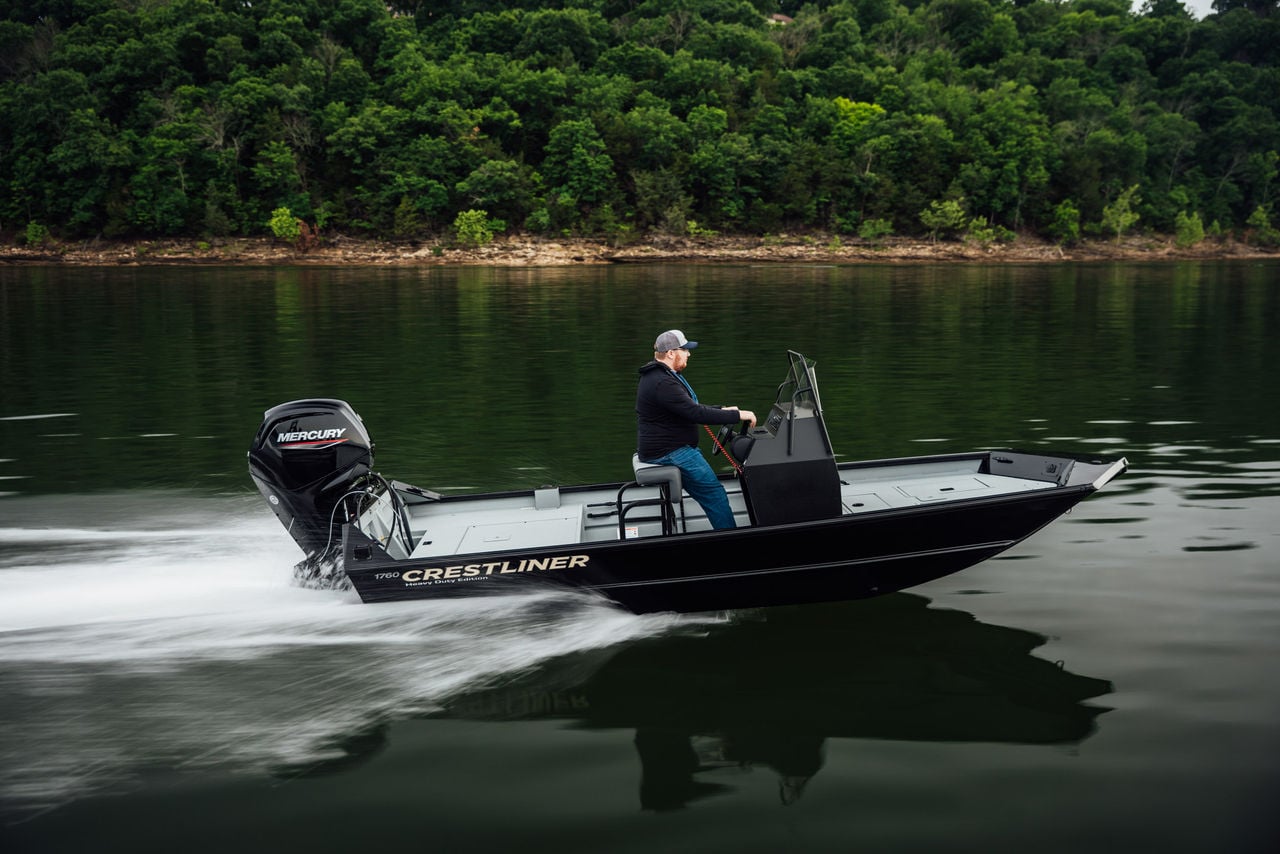

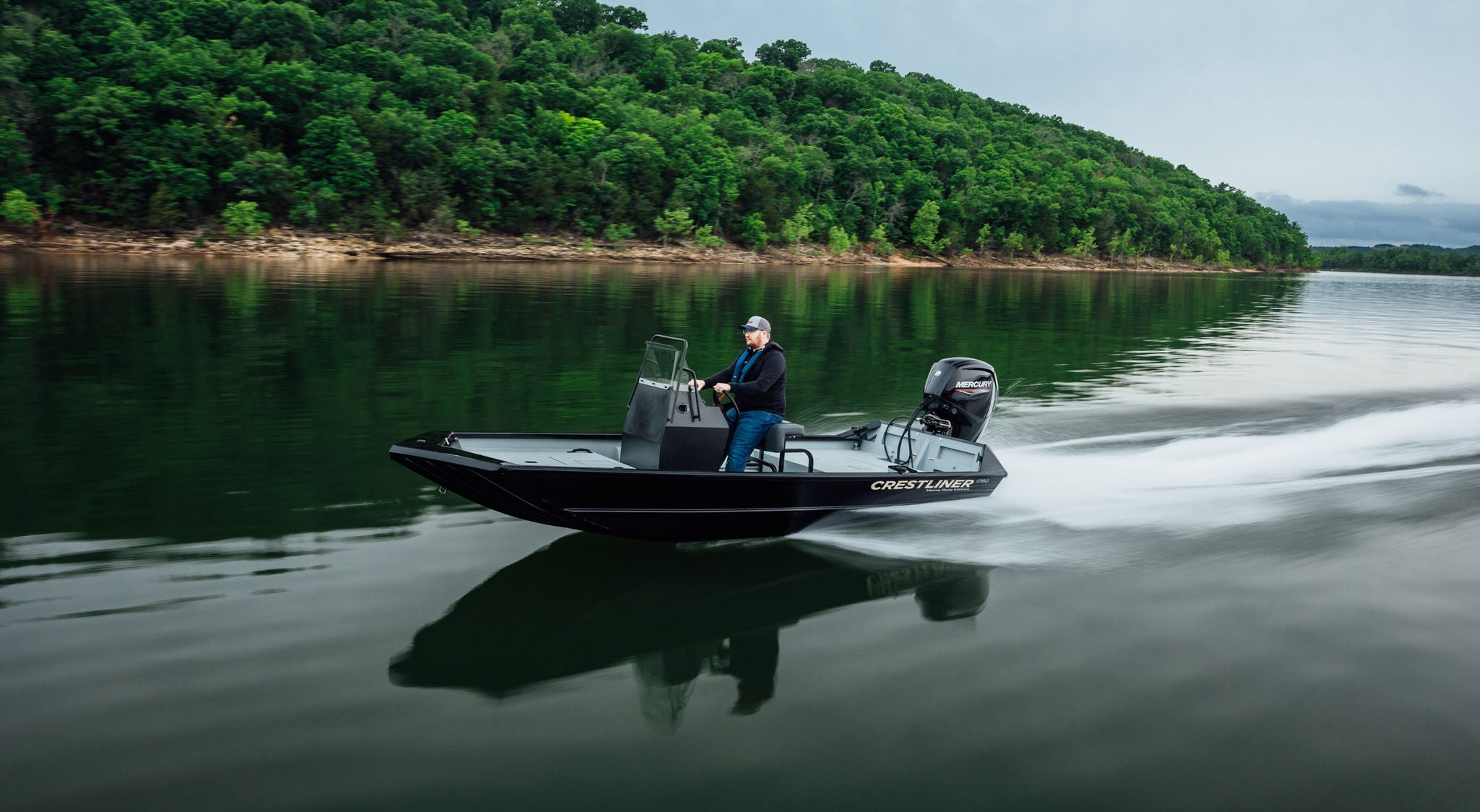

When the adventure takes you into shallow water, tight spots, and hard-to-reach places, the 1760 Retriever FCC gives you the confidence to go farther. Designed with a forward center console layout for improved visibility and all-day fishability, it delivers the space, durability, and versatility needed for hunting, fishing, and exploring. With room for four, a 17-gallon aerated livewell, and up to 80 horsepower, the 1760 Retriever FCC is built to chase opportunities.

17' Length Overall
80 Max HP
5 Persons Capacity
85" Beam

FEATURES

1760 Retriever FCC

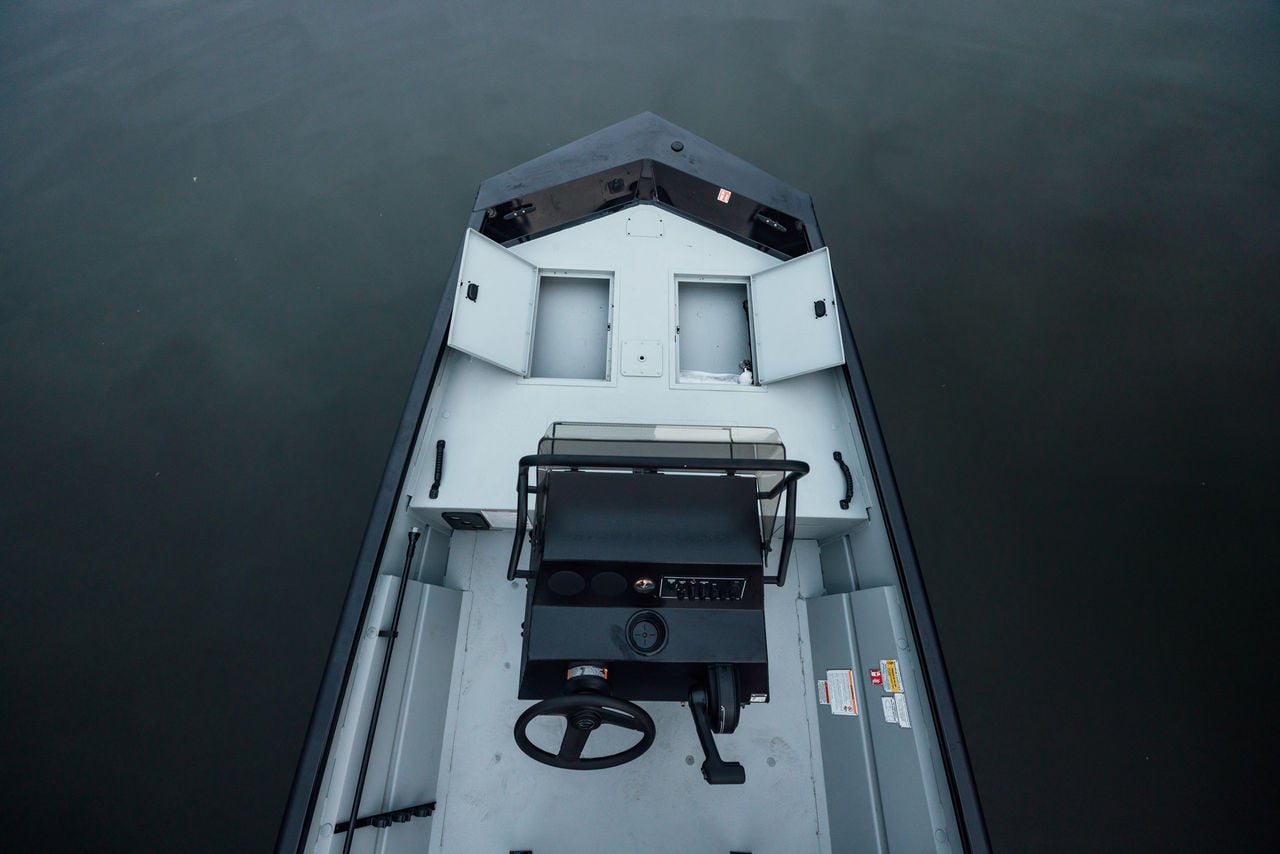

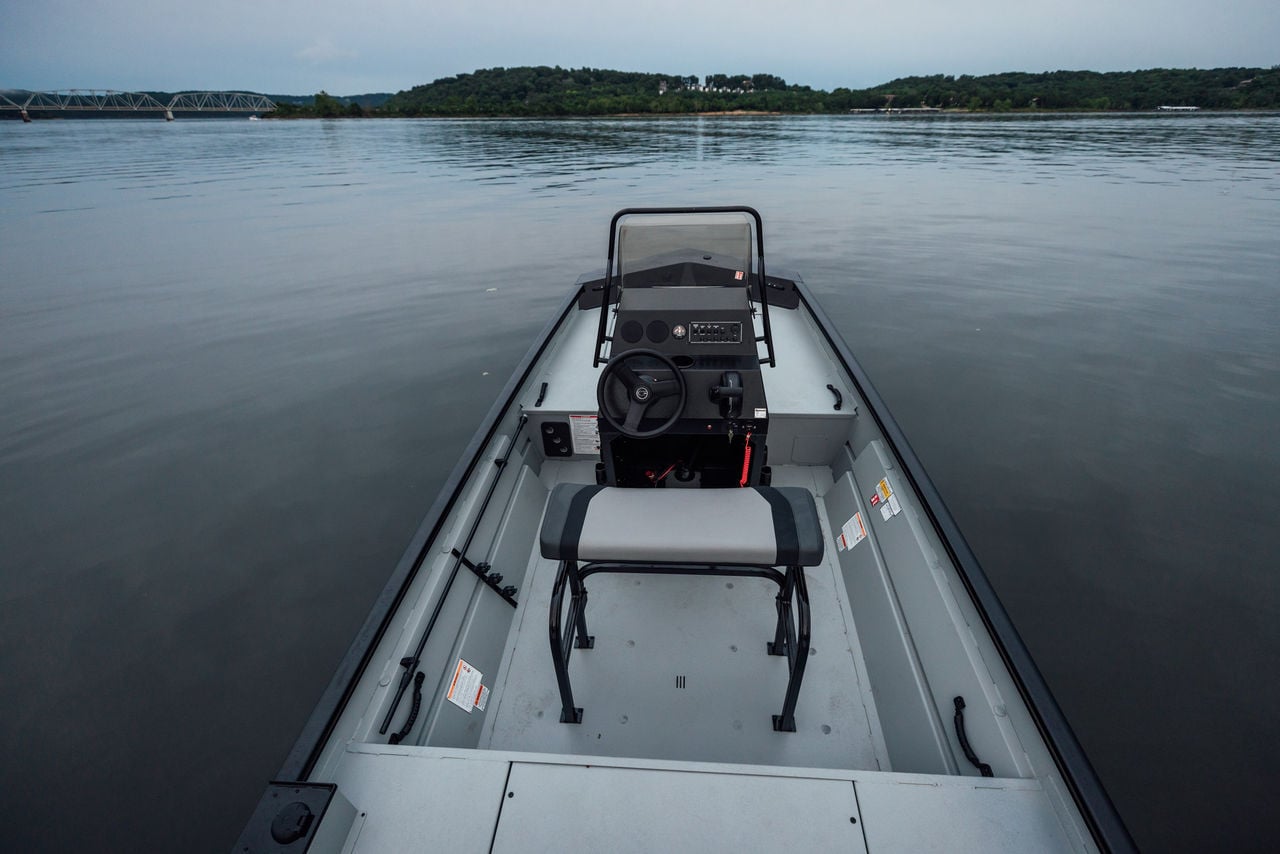

FORWARD CENTER CONSOLE DESIGN

The forward-mounted center console provides improved visibility while navigating shallow water and gives anglers a more open, fishable layout.

1760 Retriever FCC

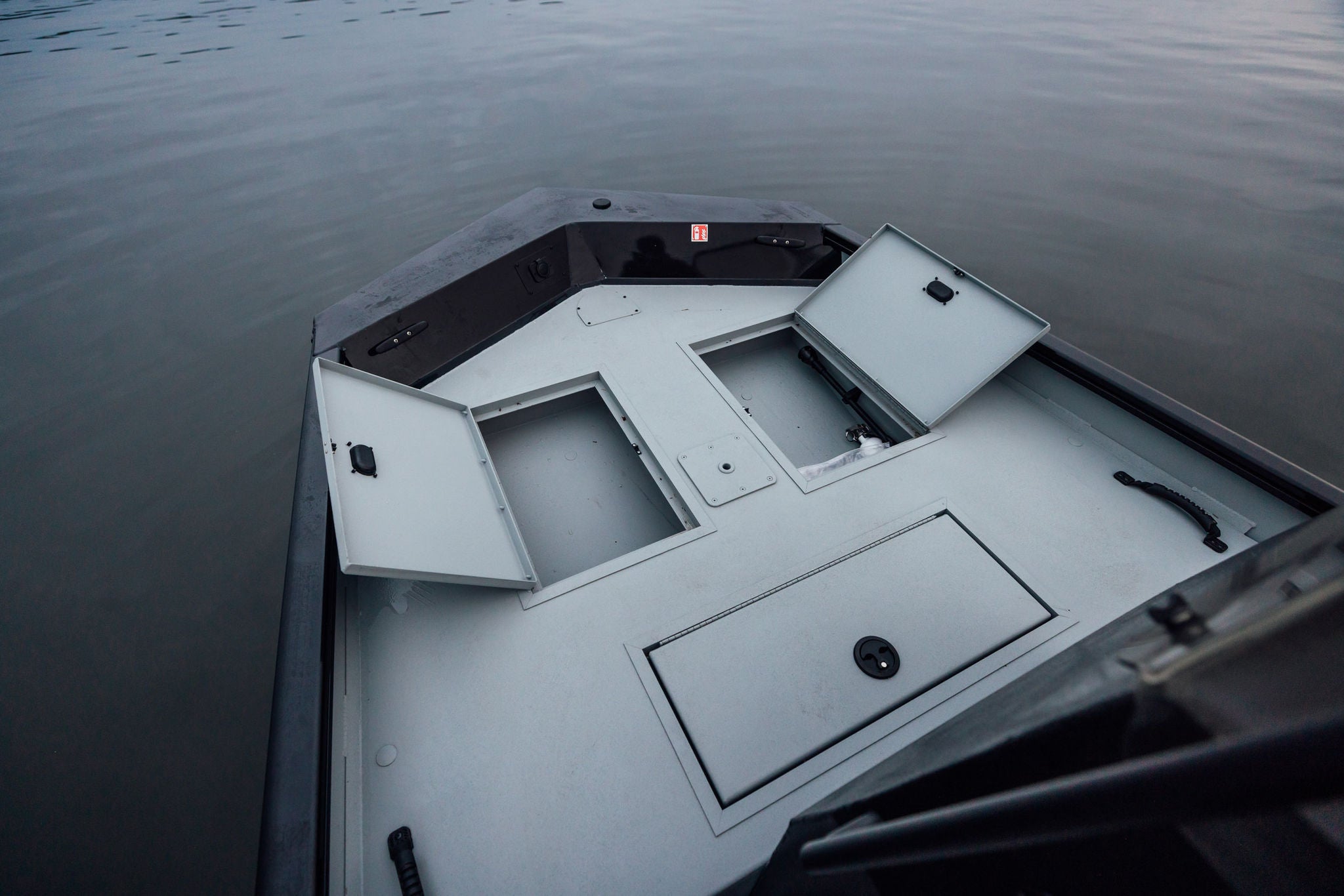

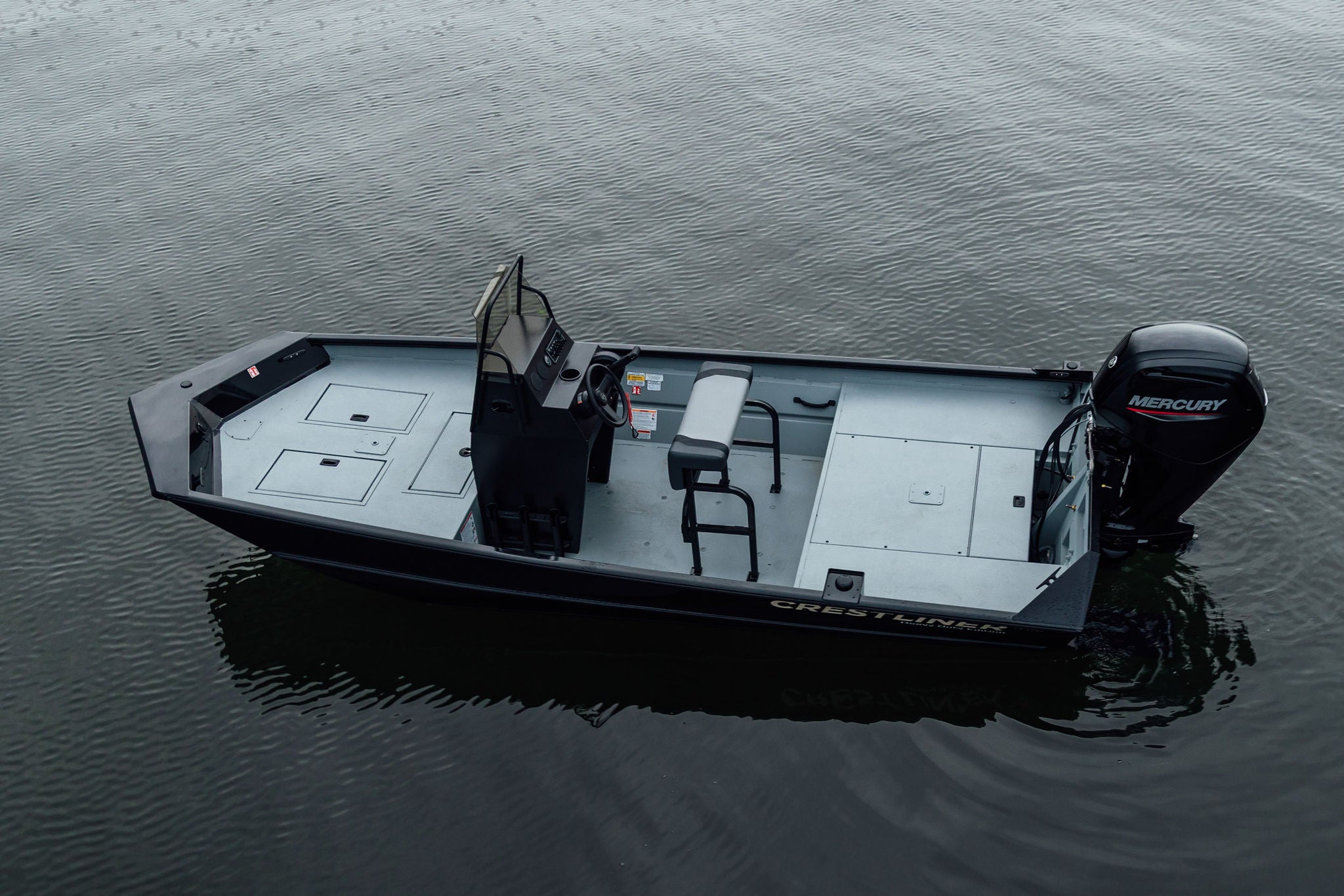

SPACIOUS BOW DECK

A large front casting platform provides room to fish comfortably while offering storage compartments to keep gear organized and a 17-gallon aerated livewell.

1760 Retriever FCC

Jet Engine Tunnel Hull

With the Jet Engine Tunnel Hull, the 1760 Retriever FCC delivers reliable performance for exploring shallow water, rivers, lakes, and beyond.

Length Overall

17'

Max HP

80

Persons Capacity

5

Beam

85"

Deadrise

3.5°

Transom Height

22"

Chine Width

60"

Side Depth

24"

Boat/Motor/Trailer Height

5' 8"

Boat/Motor/Trailer Length

19'6"

Boat/Motor/Trailer Width

7'4"

Aluminum Gauge Bottom

0.100"

Aluminum Gauge Sides

0.100"

Aluminum Gauge Transom

0.100"

Fuel Capacity

19 Gal

Maximum Weight Capacity

1328 lbs

Maximum Horsepower

80

Minimum Horsepower

65

Weight Boat (max engine, dry)

1288 lbs

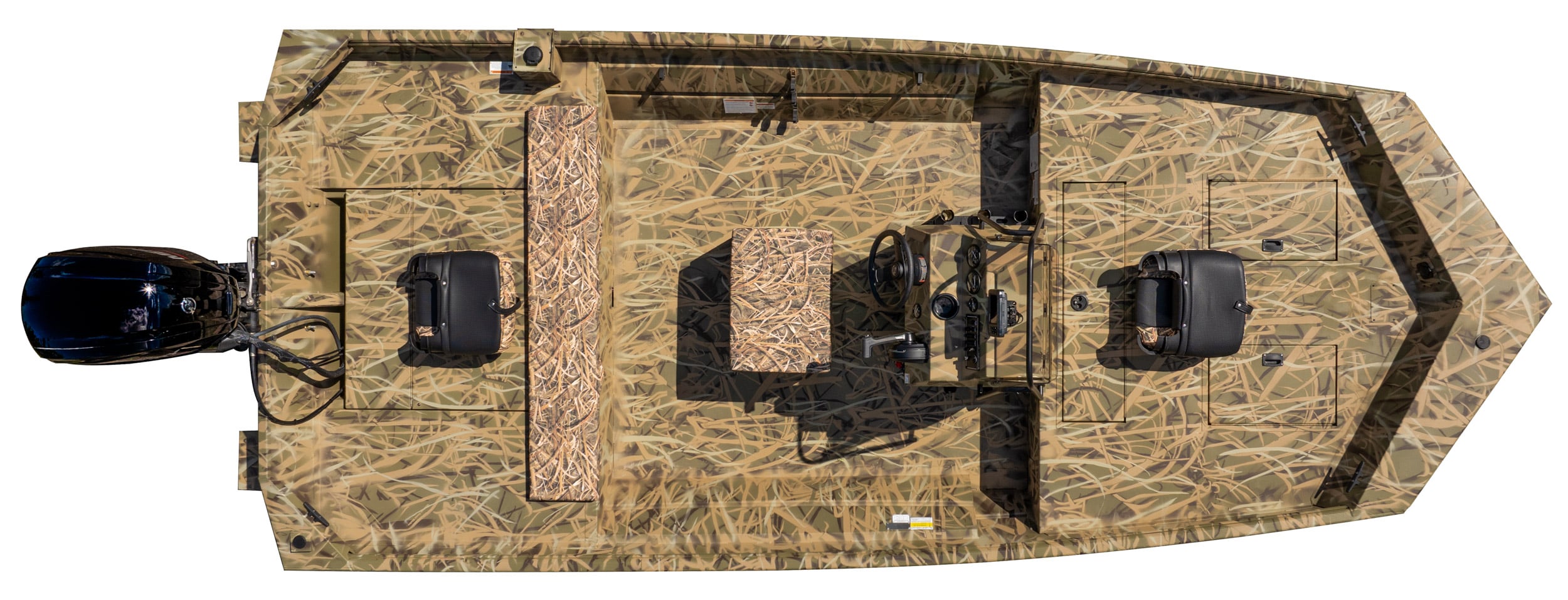

Floorplan

View all

Exterior Features

Cleats, black composite (4) Eyes, stainless steel (bow & stern) Gunnel, extruded w/lock track system Hull, aluminum, all-welded (tunnel jet) Keel, extruded full length, welded (center) Paint Process, Enamel Rib construction, cross & side Ribs, extruded, extra strength Spray rails, formed Strakes, formed 1-1/4" (6)

Accessories

Trolling motor outlet, w/6-gauge wiring harness (bow)

Console/Instrumentation

Console, forward mounted aluminum w/6 vertical rod holders, toggle switches, 12V power outlet, space for top mount electronics, drink holder & grab handle Master power switch No-feedback steering Steering wheel, black composite Fuel gauge

Flooring

Aluminum floor, flat

Interior Features

Bilge pump (manual) Compartment seals Lanyard, ignition stop switch Level flotation Light, navigation Side panels Wood-free construction

Livewells/Baitwells

Livewell, 13 gal. aerated (bow)(32Lx13.5Wx7D)

Rod Storage

Rod rack, quick access system (port) (holds 3 full-size rods) Rod rack, vertical (console) (holds 6 rods)

Seating

Pedestal floor bases (2) Seat, box w/cushion & storage below

Storage/Convenience

Platform (bow) Platform w/lid & service compartment (stern) Storage compartments w/snap latches (port & starboard, bow)

Trailer

Basic 1800LB Bunk Painted Black Trailer
Floorplan

View all

Standard Colors

Olive Drab exterior & interior Marsh Tan exterior & interior

Premium Colors

White w/Gray Crest-Liner interior Mossy Oak Break-Up exterior & interior Mossy Oak Shadowgrass Blades exterior & interior Black exterior, Gray Crest-Liner interior Crest-Liner interior coating Gun Metal & Gray Crest-Liner interior

Engine

Mercury Jet 65ELPT EFI FourStroke Mercury Jet 80ELPT EFI Fourstroke (requires Jet modification or Jet modification w/27” transom option)

Mercury Options

Pre-Rig 25HP & Up

Packages

Gauge Package

Console/Instrumentation

Horn Windscreen

Seating

Leaning post w/cushion, Mossy Oak Shadowgrass Blades Leaning Post w/cushion, Gray Vinyl Leaning post w/cushion, Mossy Oak Break-Up Cushion for stern deck, Mossy Oak Shadowgrass Blades Cushion for stern deck, Mossy Oak Break-Up Tempress Seat, Gray w/ Pedestal (1) Tempress Seat, Gray w/ Pedestal (2) Tempress seat, Mossy Oak Break-Up) w/ pedestal (1 additional) Tempress Seat, Mossy Oak Shadowgrass Blades w/pedestal

Accessories

Sponson pods Hull Gauge .125 Transducer bracket, welded Battery charger 2 bank Spray deflector Battery charger 1 bank

Trailer

Basic 1800LB Bunk Painted Black Trailer Basic 1800LB Vinyl Bunk Galvanized Trailer

Trailer Accessories

Spare Tire, w/Galv Mount(ST175/80R13C) 2X2.5 Spare Tire, w/Black Mount(ST175/80R13C)2X2.5 Tie down, ratcheting mounted pair

Limited Lifetime Warranty

Crestliner's longstanding promise to deliver superior durability, exceptional design and unmatched value is a commitment we don't take lightly. As part of that commitment, we stand by our product with a warranty that is unmatched by competitors. For additional information about our warranty, and how to transfer coverage to a new owner, see the list of Warranty Documents.

Limited Lifetime Warranty

Crestliner boats, from model year 2010 and newer, have a warranty that may be transferred to subsequent owners. To transfer any remaining portions of your Crestliner warranty, please register your pre-owned Crestliner. To register your warranty information with Crestliner, print and complete the Warranty Transfer form and mail it in to Crestliner within 90 days of purchase, along with a copy of the Bill of Sale or Title, and a $250 warranty transfer fee. The check or money order should be made payable to Crestliner.

Warranty on Crestliner CR Jon boats may not be transferred.

For more information on warranties, contact your local Crestliner dealer.
